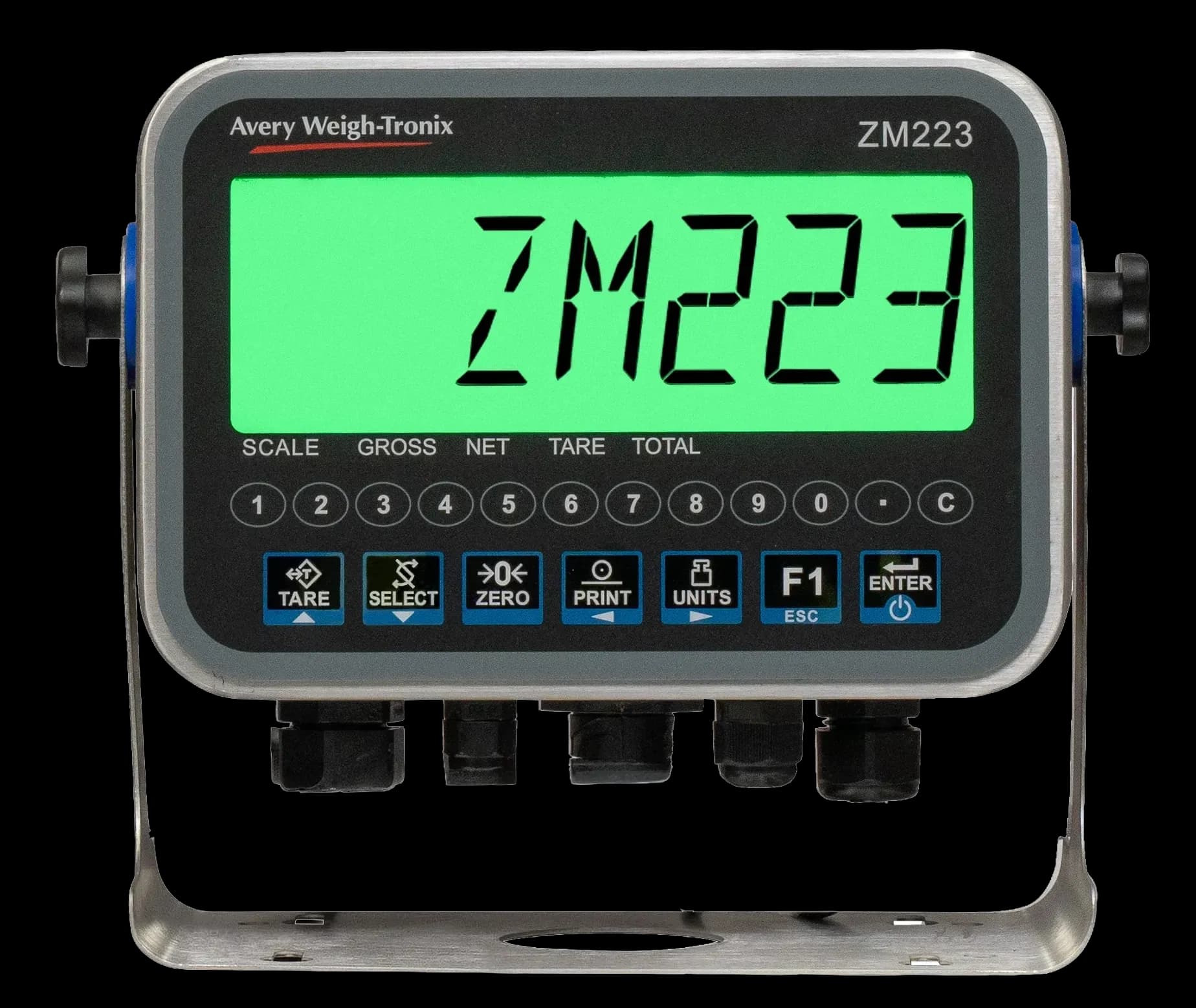

Avery Weigh-Tronix ZM223 Weight Indicator
Click image to enlarge and zoom.
Construction
304 brushed stainless steel
Legal for Trade
NTEP, 10,000 d
IP Rating
IP69K desktop; IP66 panel mount
Operating Temperature
-4 to 140 F industrial
Readability
1.5 in alphanumeric digits
Connectivity
RS232, USB host, Ethernet, Bluetooth
Power Supply
90-264 VAC or 12-24 VDC
Approvals & Certifications
- National Type Evaluation Program (NTEP)
Delivered product may vary depending on model and options selected.
Weight Indicators, Scale Terminals, Displays & Scoreboards
Avery Weigh-Tronix ZM223 Weight Indicator
Select a configuration
Files & Downloads
Avery Weigh-Tronix ZM223 Weight Indicator
The Avery Weigh-Tronix ZM223 provides IP69K desktop or IP66 panel-mount protection, a sunlight-readable color-changing display, Remote Assist support, and applications for weighing, counting, checkweighing, batching, grading, and process control.
The ZM223 is designed for demanding industrial and food-processing environments where operators need clear weight guidance, reliable washdown protection, and flexible data access.
- Use the IP69K stainless desktop model for demanding washdown areas or the IP66 stainless panel-mount model for control-panel integration.
- Guide operators with a sunlight-readable 1.5-inch display and green, red, orange, or yellow backlighting.
- Connect through RS232, USB host, Ethernet, Bluetooth, and the Remote Assist mobile app.
- Choose from general weighing, counting, check-counting, checkweighing, grading, batching, filling, and additional applications.
