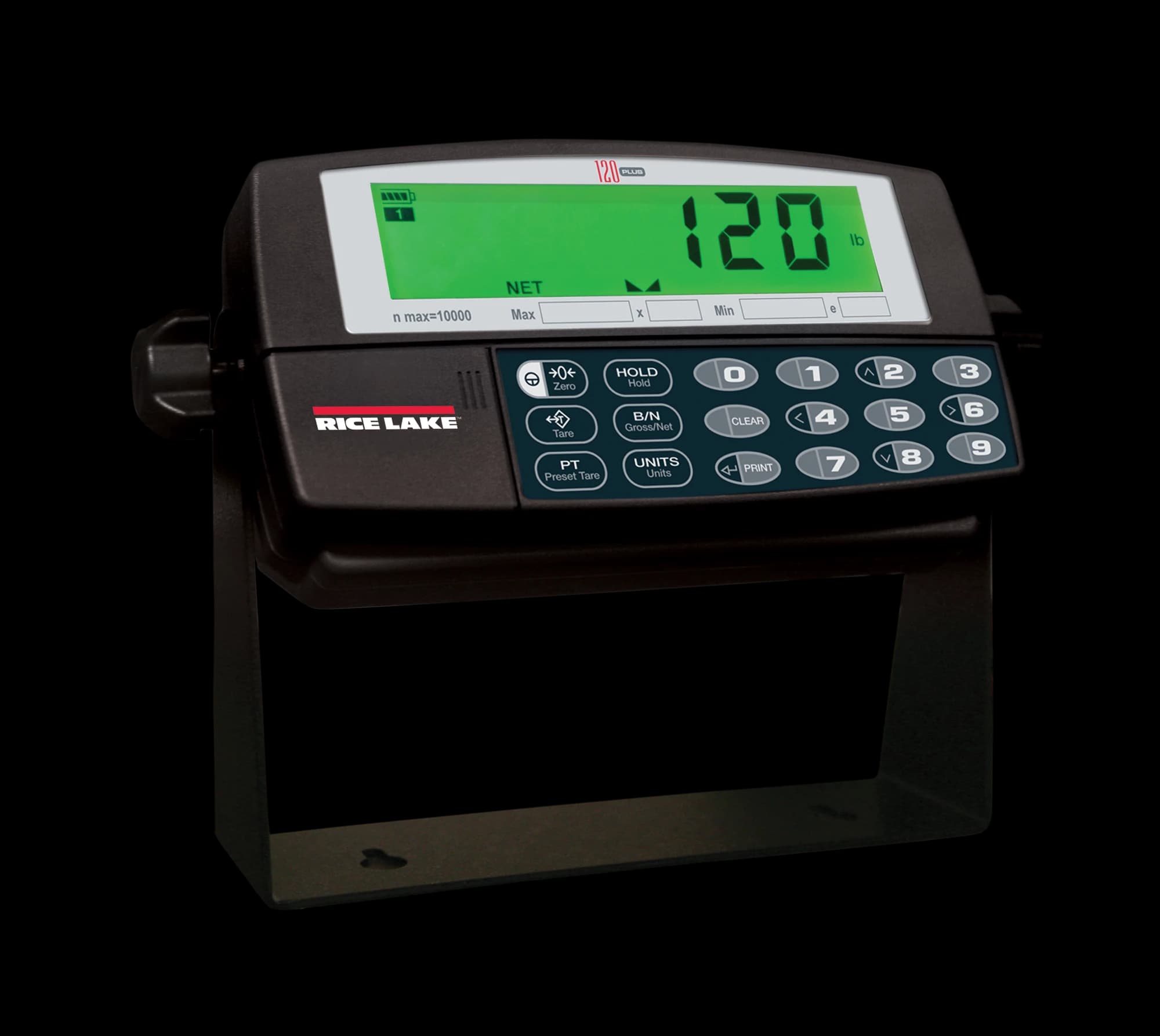

Rice Lake 120 Plus Digital Weight Indicator
Click image to enlarge and zoom.
Construction
Heavy-gauge ABS
Battery Operation
Rechargeable lithium battery
Ticketing System
Two programmable 180-character ticket formats
Connectivity
RS-232 EDP and printer ports; optional 20 mA printer output
Power Supply
115 or 230 VAC; 50/60 Hz
Approvals & Certifications
- National Type Evaluation Program (NTEP)Class III/IIIL; 10,000 d - 03-059
- Measurement CanadaAM-5517
- EU Test CertificateTC7626
- CE Marking
Delivered product may vary depending on model and options selected.
Weight Indicators, Scale Terminals, Displays & Scoreboards
Rice Lake 120 Plus Digital Weight Indicator
Rechargeable desktop indicator with a backlit LCD, numeric entry and stored tare values for repeated weighing tasks.
- Switch between pounds, kilograms, ounces and grams.
- Two communication ports support a computer connection and configurable weight-ticket printing.
- Create two print formats with up to 180 characters per format.
- Configure the indicator and perform digital calibration from the front panel.
- The supplied tilt stand supports convenient desktop viewing.
Select a configuration
Files & Downloads
Rice Lake 120 Plus Digital Weight Indicator
Rechargeable desktop indicator with a backlit LCD, numeric entry and stored tare values for repeated weighing tasks.
The Rice Lake 120 Plus brings clear weight information to material-handling, shipping and receiving stations. Its backlit LCD, numeric keypad and rechargeable battery make it useful where operators move between weighing tasks.
Two independent communication ports connect weight data to a computer and printer. Custom ticket formats, consecutive transaction numbering and selectable weighing units support consistent records without making routine operation complicated.
Ten stored tare values reduce repeated entry for familiar containers. Display hold averages a reading over three seconds, while power-save operation reduces battery use between tasks. Select digital I/O when external input and output connections are needed.
Match the load-cell connection and any optional interface to the selected configuration. Replacement components and compatible accessories are listed separately below.
