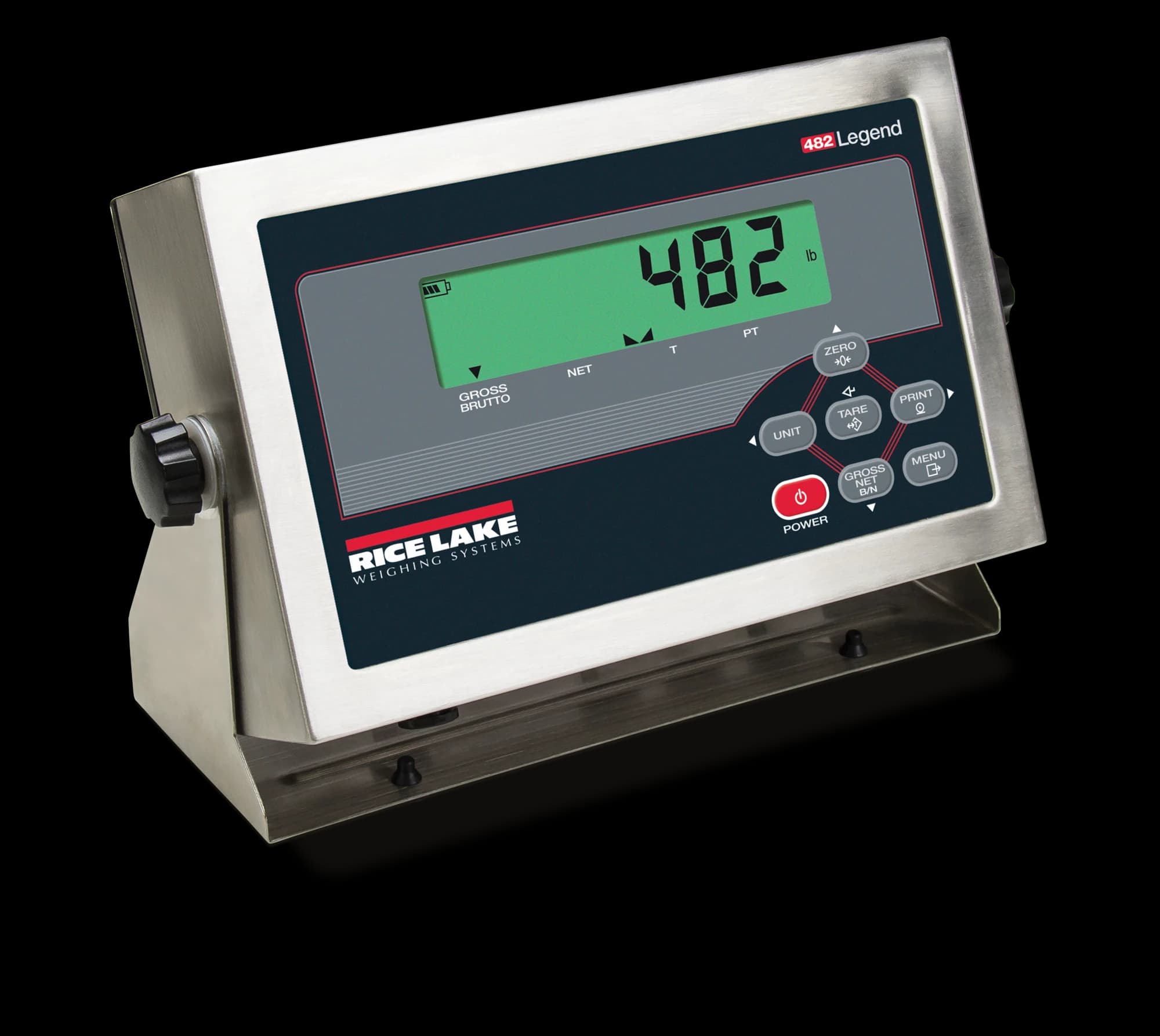

Rice Lake 482 Legend Digital Weight Indicator
Click image to enlarge and zoom.
Resolution
100,000 displayed counts
Construction
Stainless steel
Ticketing System
Programmable gross, net, accumulator and setpoint tickets
Connectivity
Two serial ports; RS-232 and optional 20 mA output
Power Supply
100-240 VAC; 50/60 Hz; 8 W
Approvals & Certifications
- National Type Evaluation Program (NTEP)Class III/IIIL; 10,000 d - 12-123
- Measurement CanadaAM-5892C
- OIMLR76/2006-NL1-15.24
- NOM1602CE10158
- CE Marking
- UKCA
- cULus Listed
Delivered product may vary depending on model and options selected.
Weight Indicators, Scale Terminals, Displays & Scoreboards
Rice Lake 482 Legend Digital Weight Indicator
Stainless-steel LCD indicator for washdown weighing and batching, with a six-button keypad.
- Keep time and date settings available for weighing records.
- Use the indicator in local or remote weighing arrangements.
- Connect weighing data and printing equipment through independently configured ports.
- A gasketed stainless-steel enclosure carries NEMA Type 4X and IP66 ratings.
- Customize gross, net, accumulator and setpoint ticket formats.
Select a configuration
Files & Downloads
Rice Lake 482 Legend Digital Weight Indicator
Stainless-steel LCD indicator for washdown weighing and batching, with a six-button keypad.
The Rice Lake 482 Legend combines a backlit LCD readout with a stainless-steel, NEMA Type 4X/IP66 enclosure. It is built for weighing stations exposed to washdown, dust and demanding industrial work.
A six-button tactile keypad provides straightforward operation and setup. Gross/net functions, an accumulator and eight setpoints support tasks ranging from routine weighing to sequenced batching.
Two independent serial ports, five continuous output formats and configurable weight tickets make it easier to connect the indicator to other equipment. Battery-backed time and date support consistent weighing records, and Revolution software provides another setup option.
Choose the required plug and output configuration. Analog output and digital-input/relay boards are optional; adding an option may also require its mounting bracket. A panel-mount bezel does not retain the enclosure NEMA rating.
