Rice Lake 1280 Enterprise Series Programmable Digital Weight Indicator
Click image to enlarge and zoom.
Approvals & Certifications
- National Type Evaluation Program (NTEP)15-001,Class III / IIIL,10,000 d; 15-001A1 and 15-001 are specified; confirm the certificate revision applicable to the selected configuration.
- Measurement CanadaAM-5980C,Class III / IIIHD,10,000 d; Confirm approval applicability to the selected configuration.
- OIMLR76/2006-A-NL1-19.23,Class III / IIII,10,000 d; Confirm applicability to the selected configuration.; R61-1/2017 TC8596; Confirm applicability to the selected configuration.
- NMINMI S820; Confirm applicability to the selected configuration.
- NOM1602CE12346; Confirm applicability to the selected configuration.
- cULus ListedListed Universal and Wall; DC Panel listing must be confirmed for the selected configuration.
- cULus / UL RecognizedAC Panel enclosure; Recognized Panel; Panel recognition depends on the AC/DC configuration; confirm applicability to the selected panel. DC Panel recognition is not established by this selection.
- CE MarkingCE marked; CE marking; confirm applicability to the selected configuration.
Delivered product may vary depending on model and options selected.
Indicators & Terminals
Rice Lake 1280 Enterprise Series Programmable Digital Weight Indicator
- Customizable color touchscreen and graphical user interface
- User-defined softkeys, icons and graphics
- Tactile keypad on numeric-keypad models for operations, numeric entry and navigation
- On-screen keyboard or external keyboard during entry
- Built-in web server for remote access, integration and monitoring
- Multi-language operation and text entry
- Supports eight scales: analog/multi-range/interval, total summing, serial, iQUBE²/iQUBE³ and program scales
- Six option-card slots for scales, serial ports, I/O, analog and protocol interfaces
- iRite programming with five built-in applications: truck in/out, recipe, filling/dosing, counting and checkweighing
- Event-based user programs;150 built-in functions for processes/data tables
- Application-specific data transfer via email, FTP and networked printers
- Line-chart/bar-graph display and iRite iQUBE-alert reporting
- Email, USB, Ethernet TCP/IP, Wi-Fi Direct and two serial ports
- Alibi memory captures serial transmissions
- Four configurable data-stream formats
- 100setpoints with18configurabletypes
- Eight digitalI/O for control/pulsecount

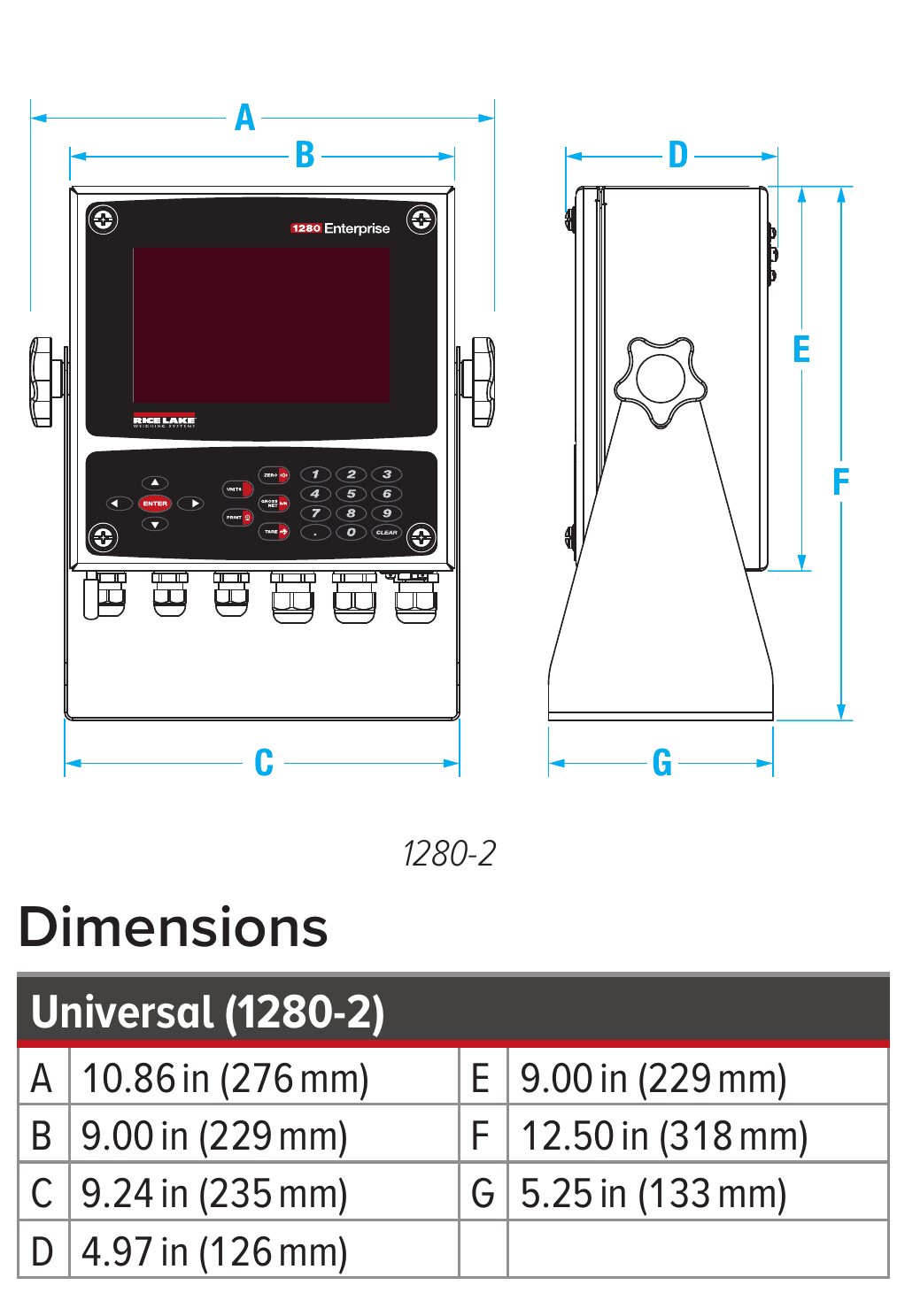

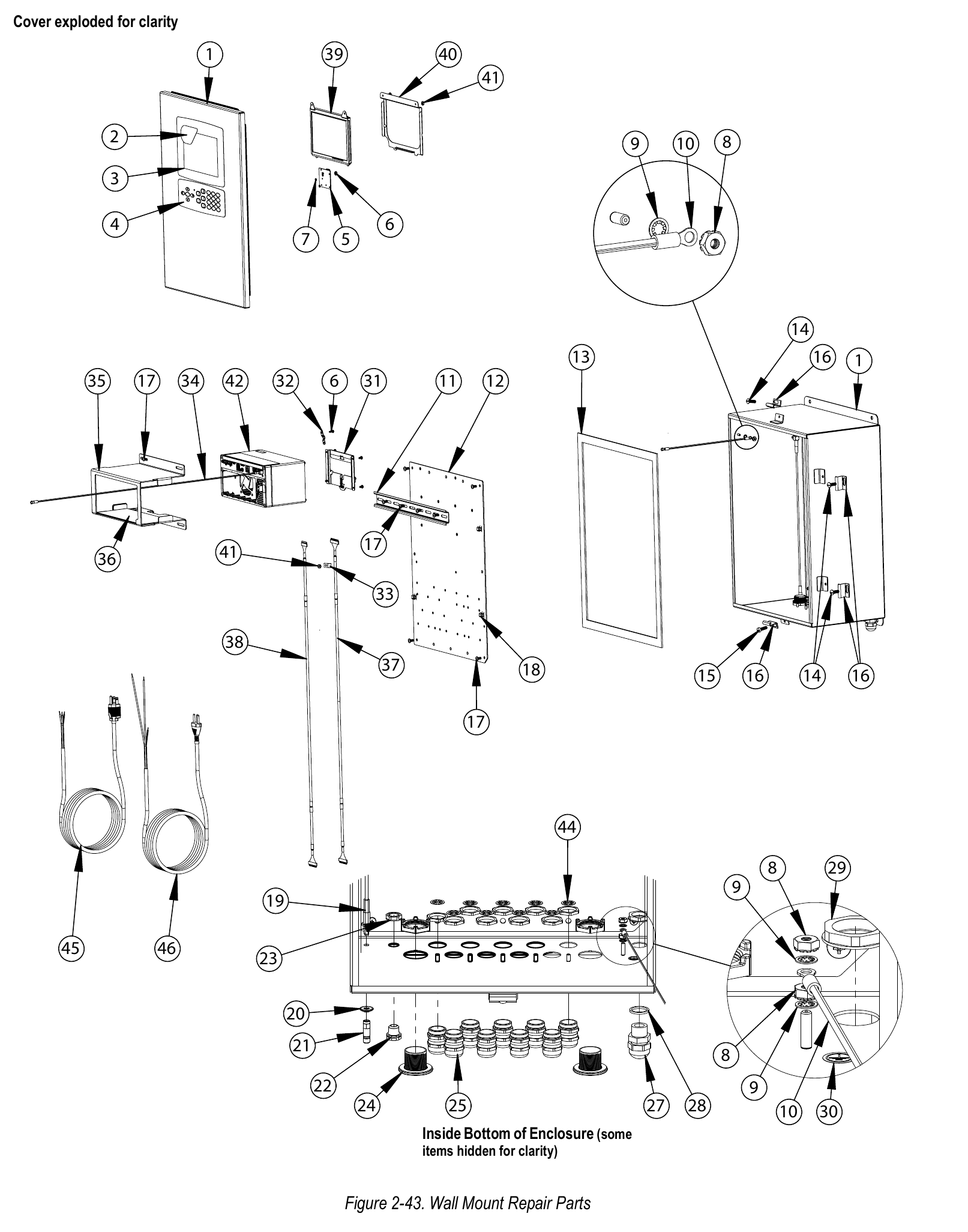

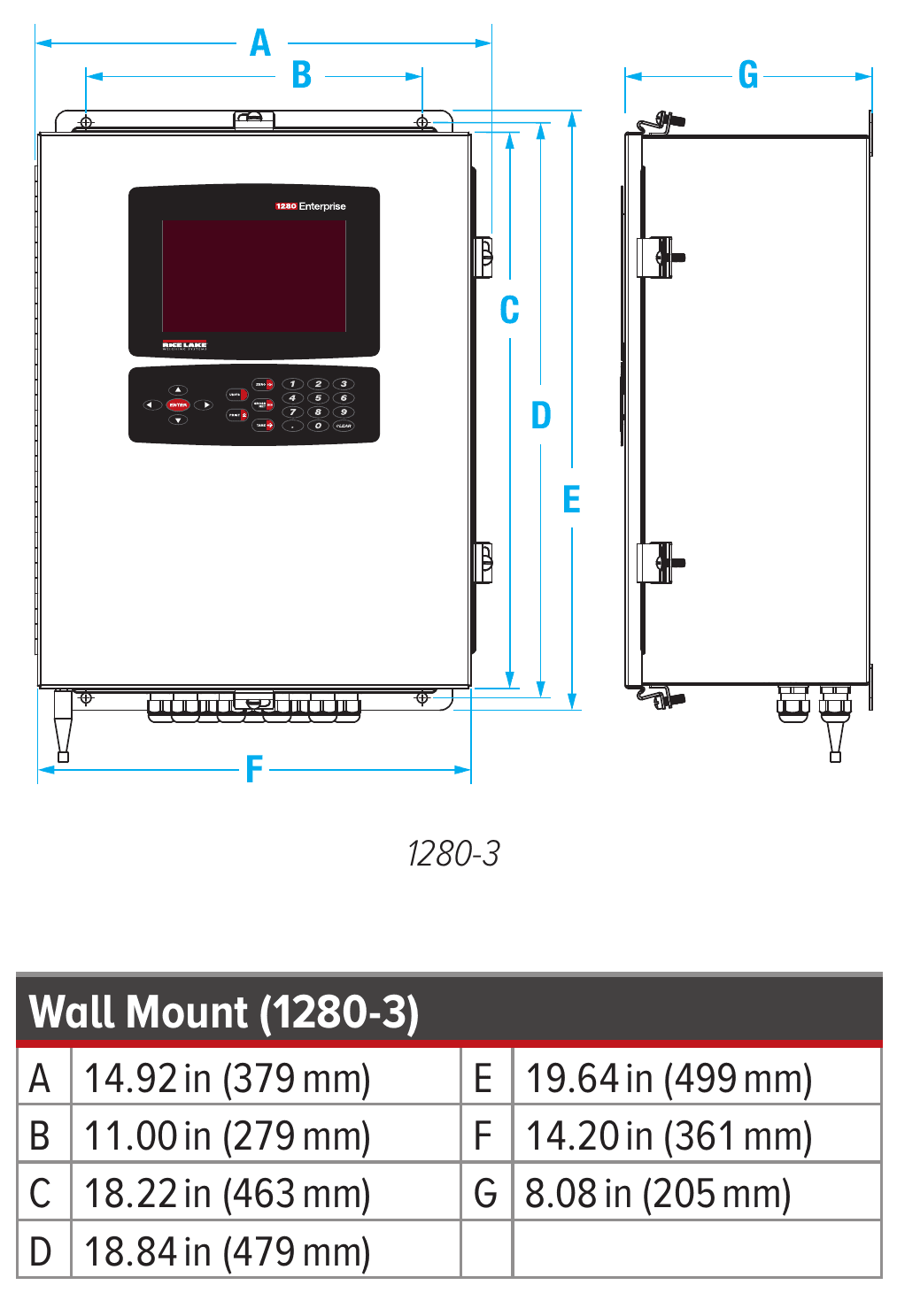

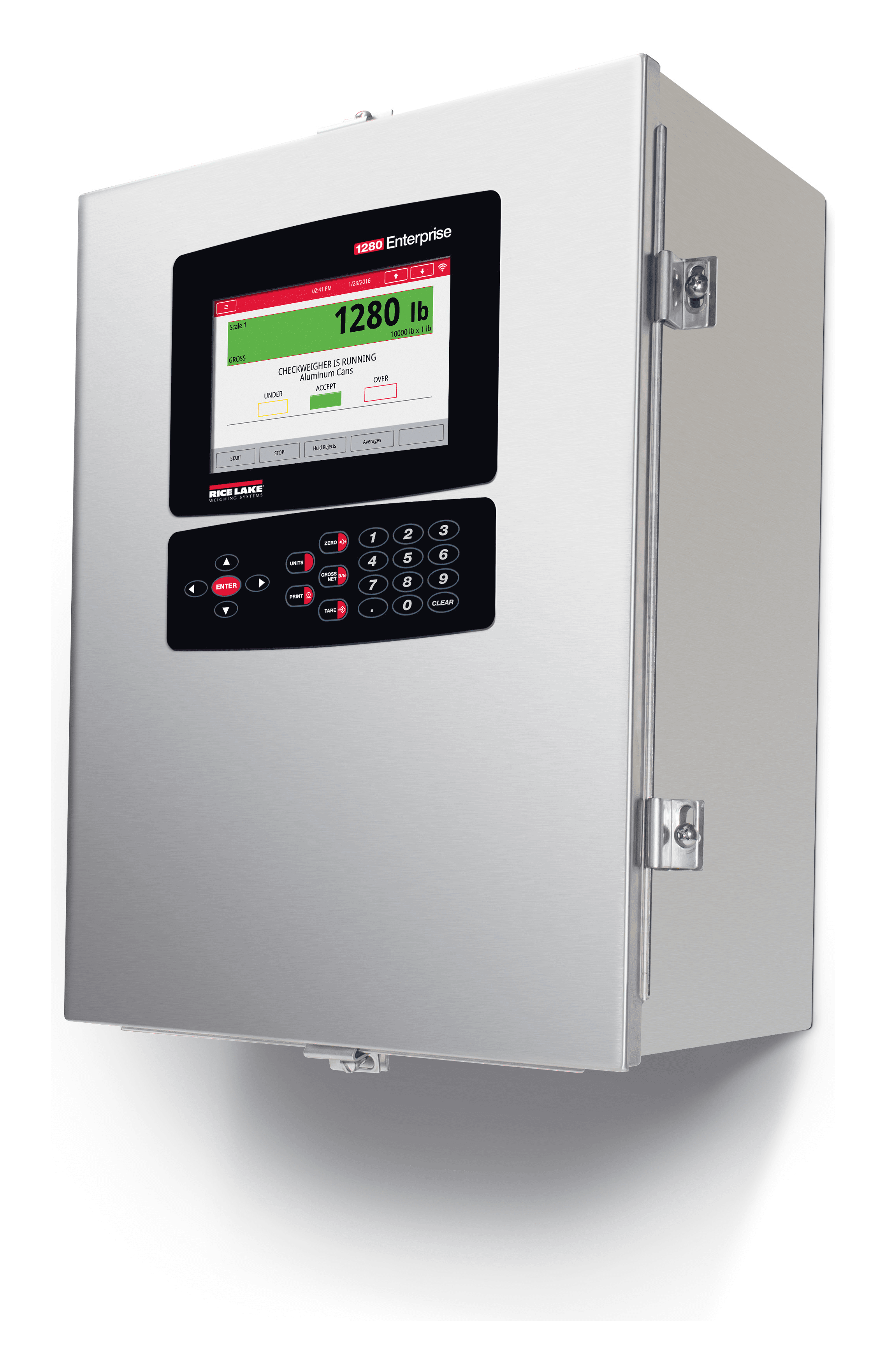

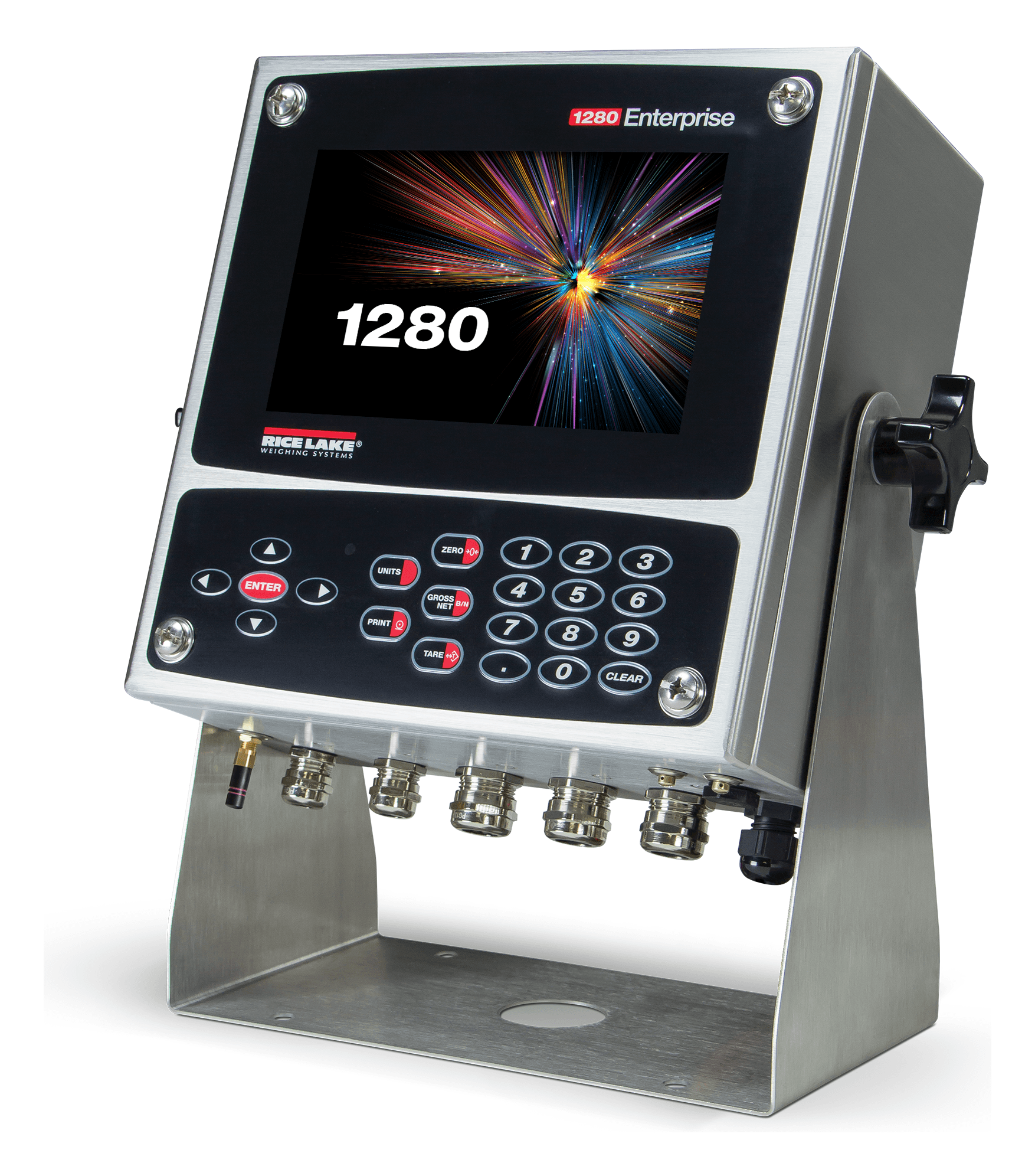

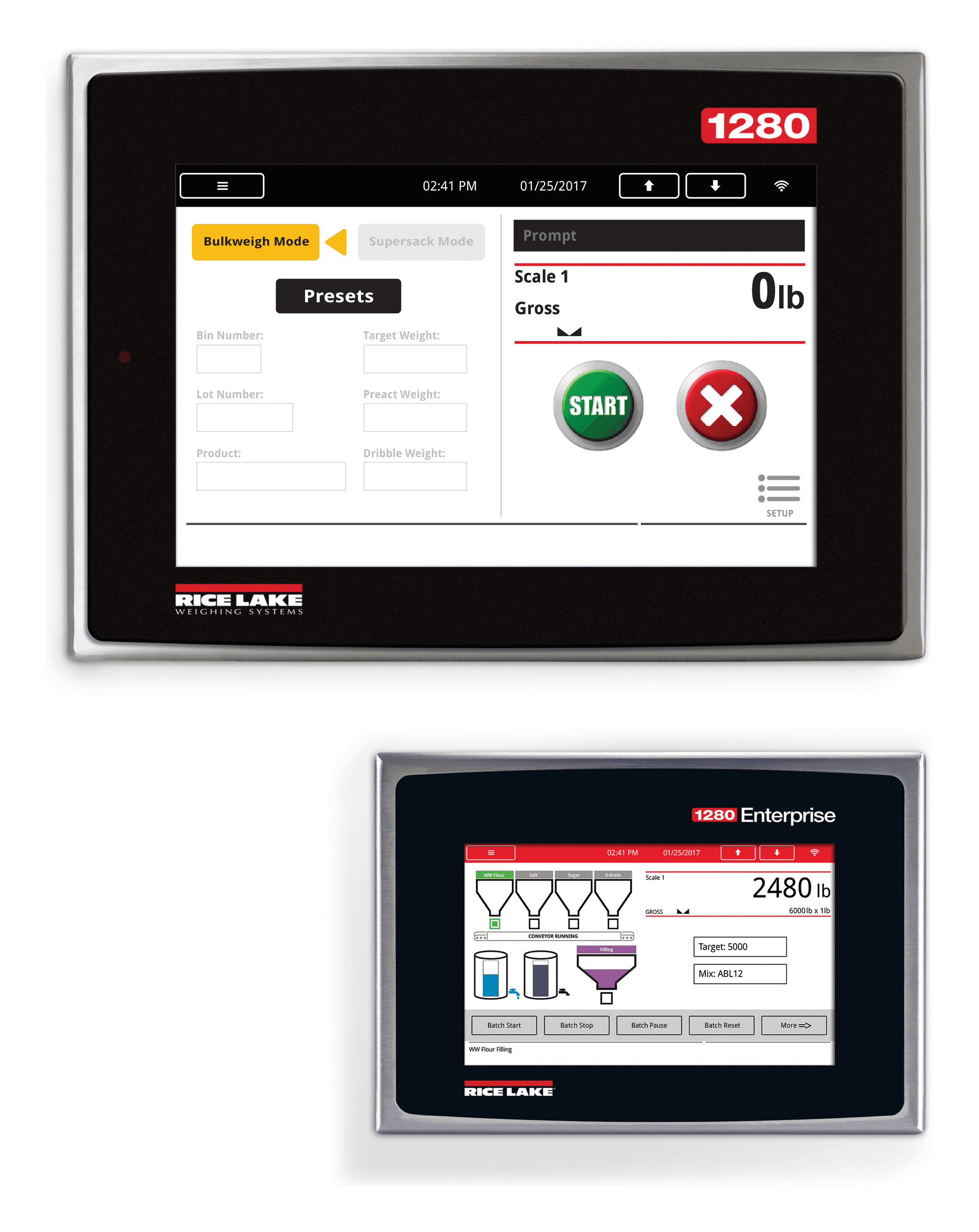

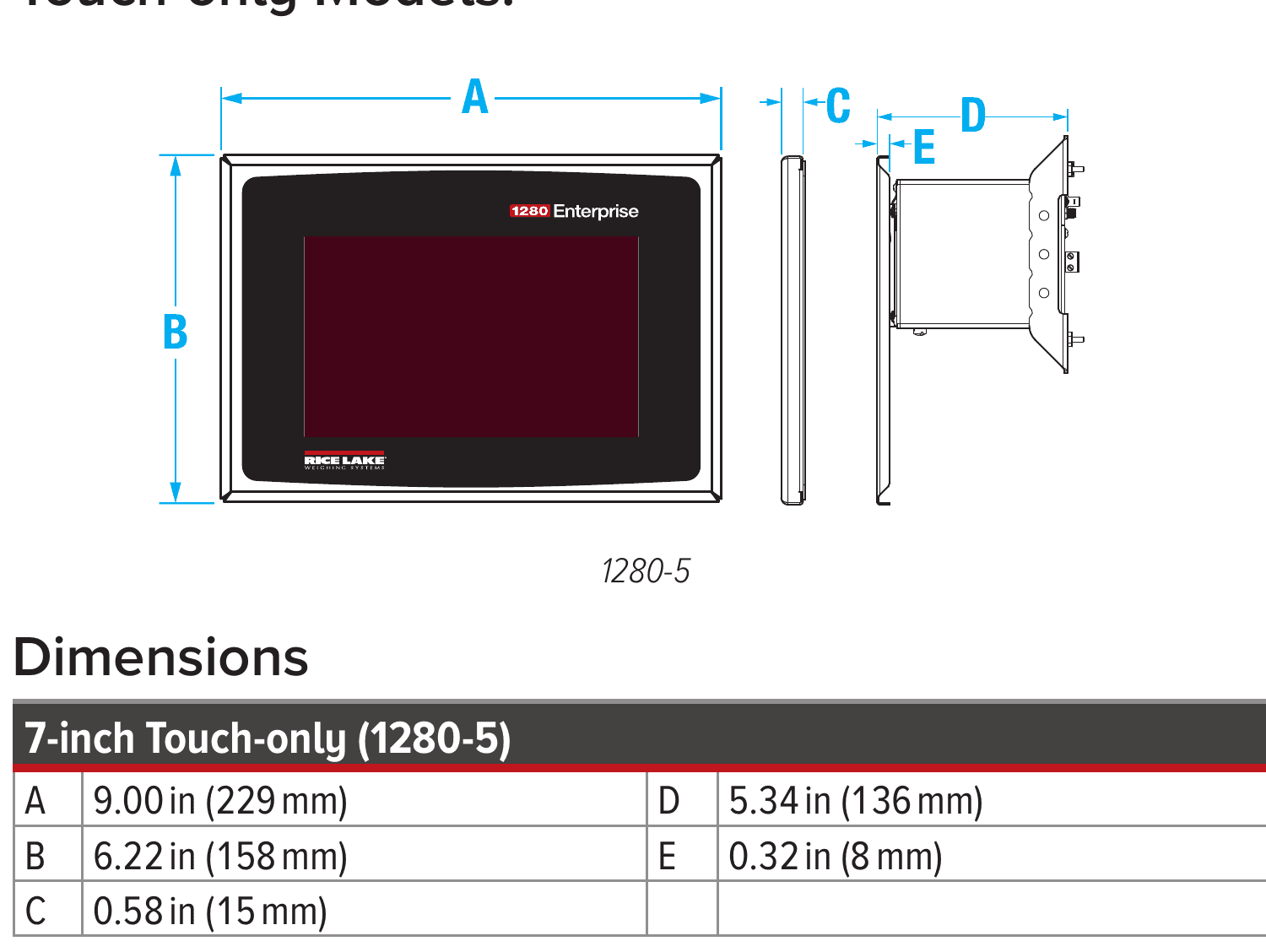

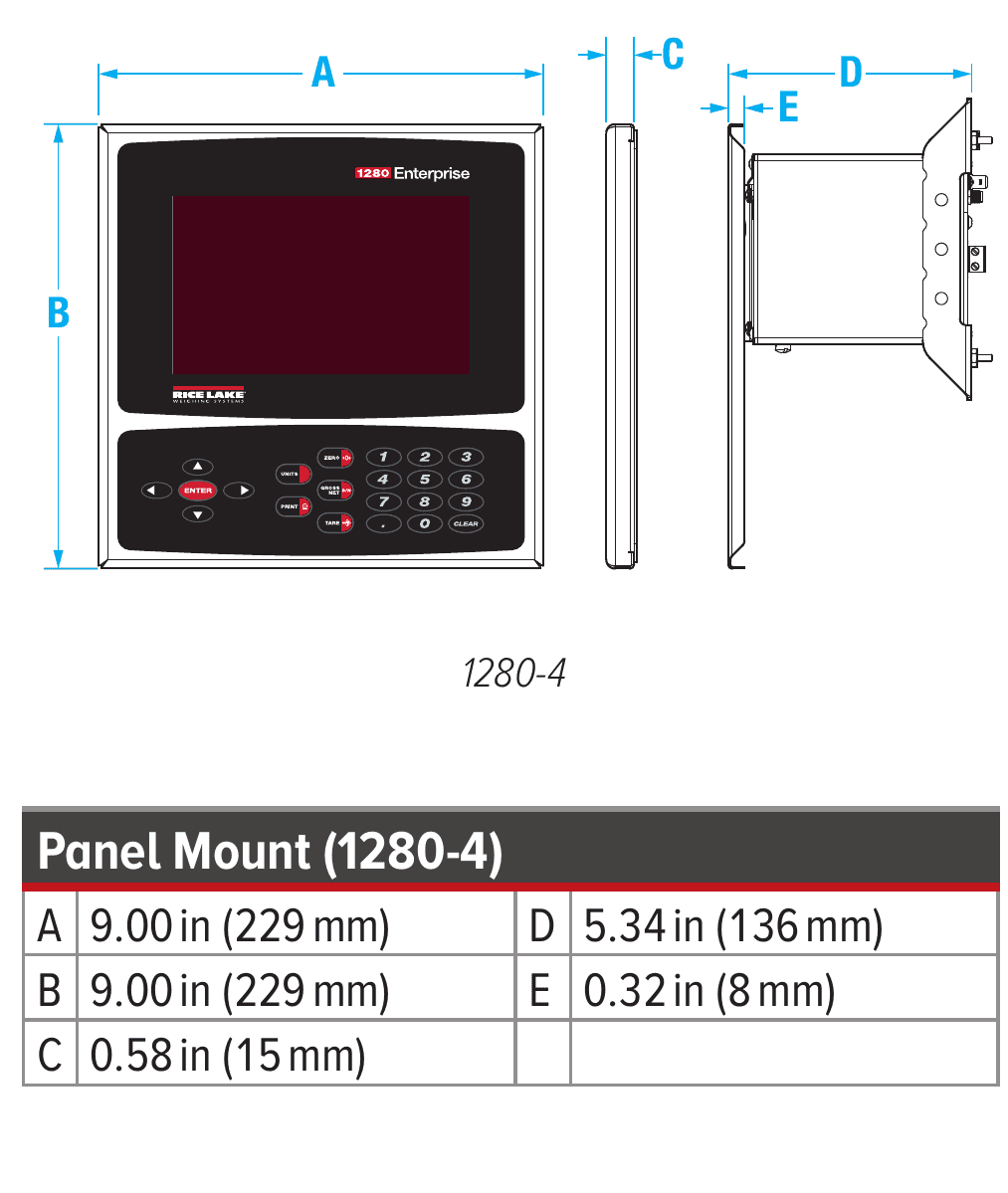

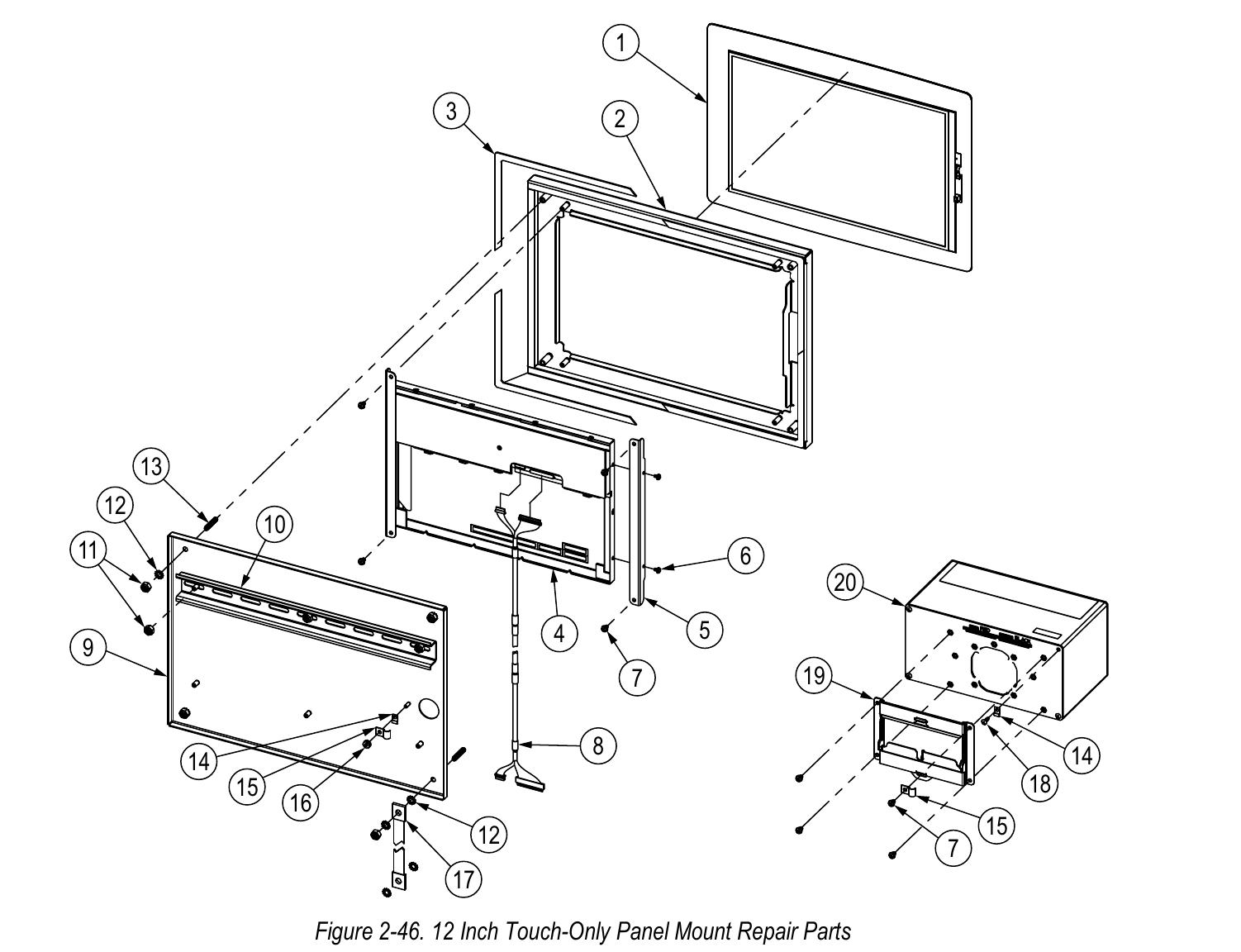

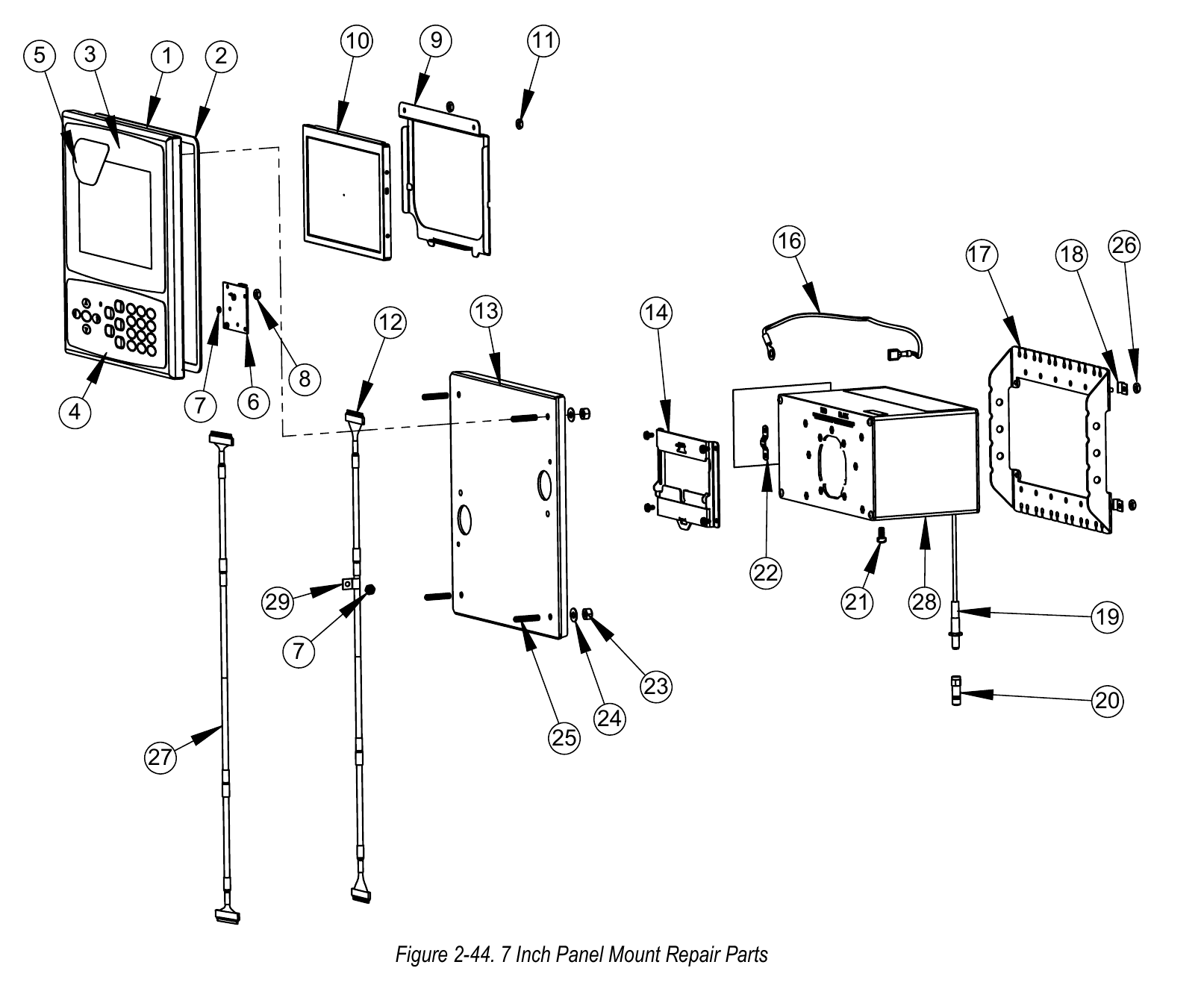

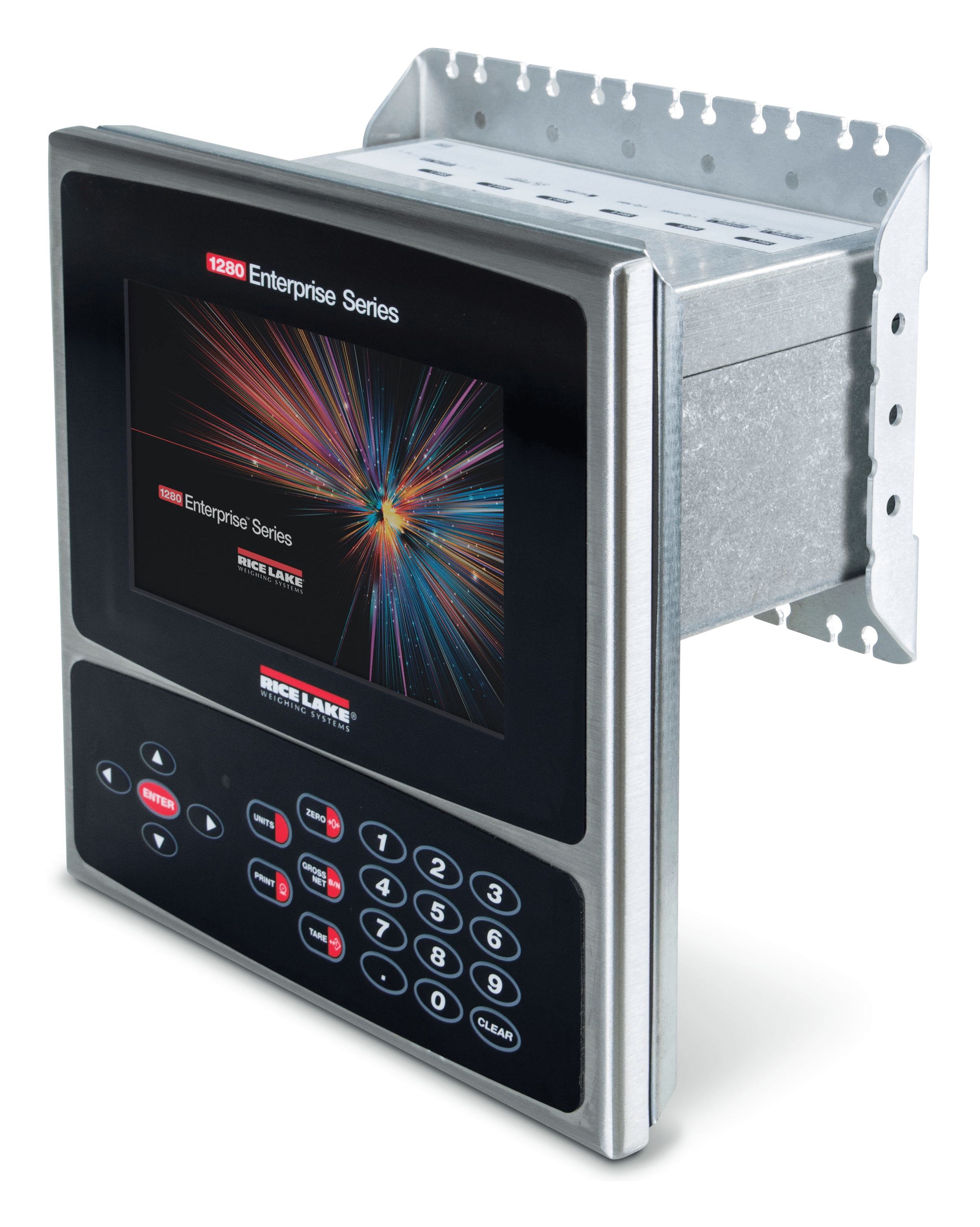

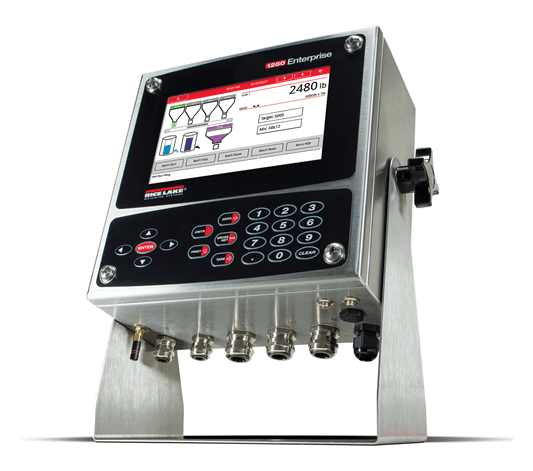

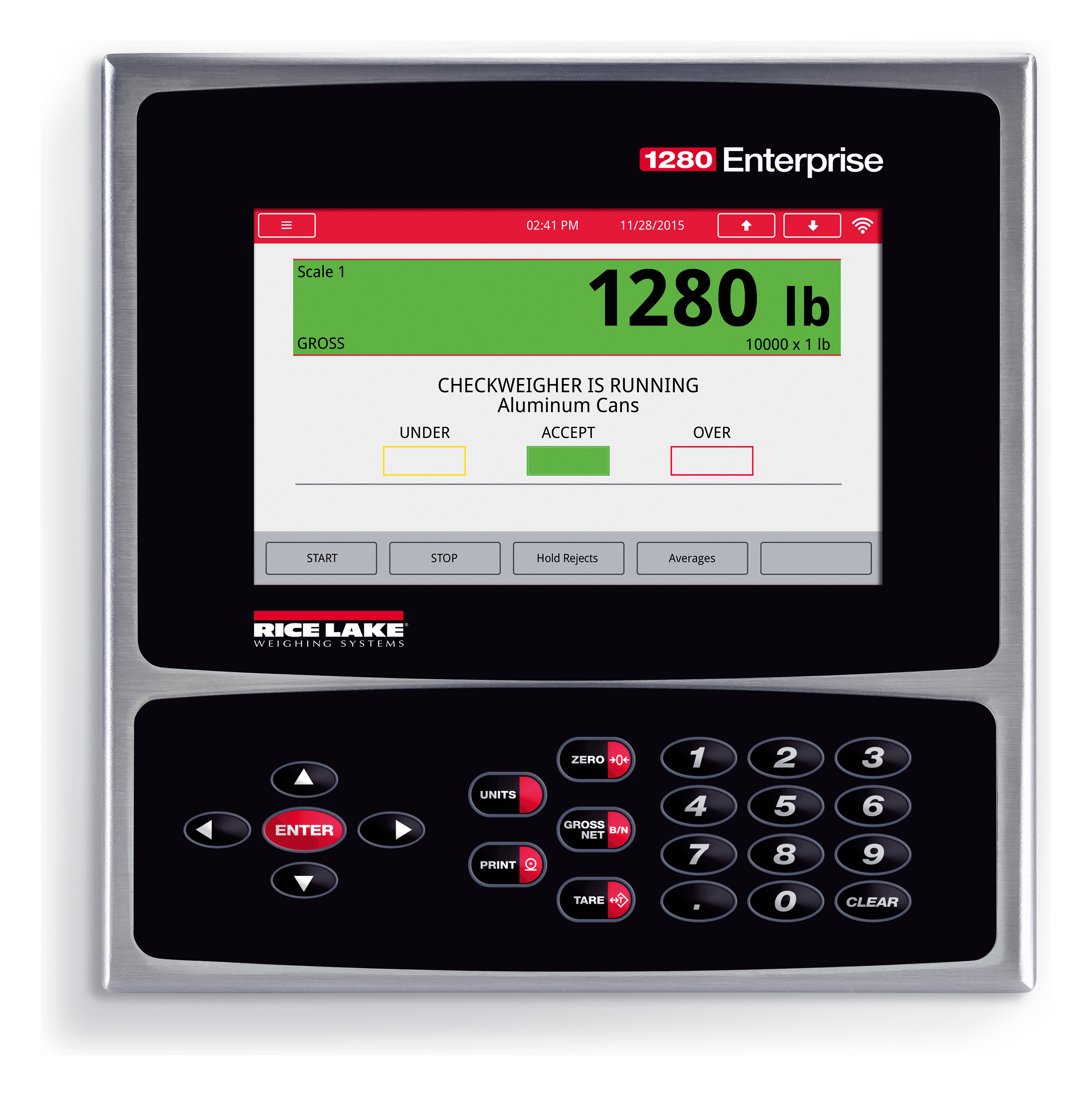

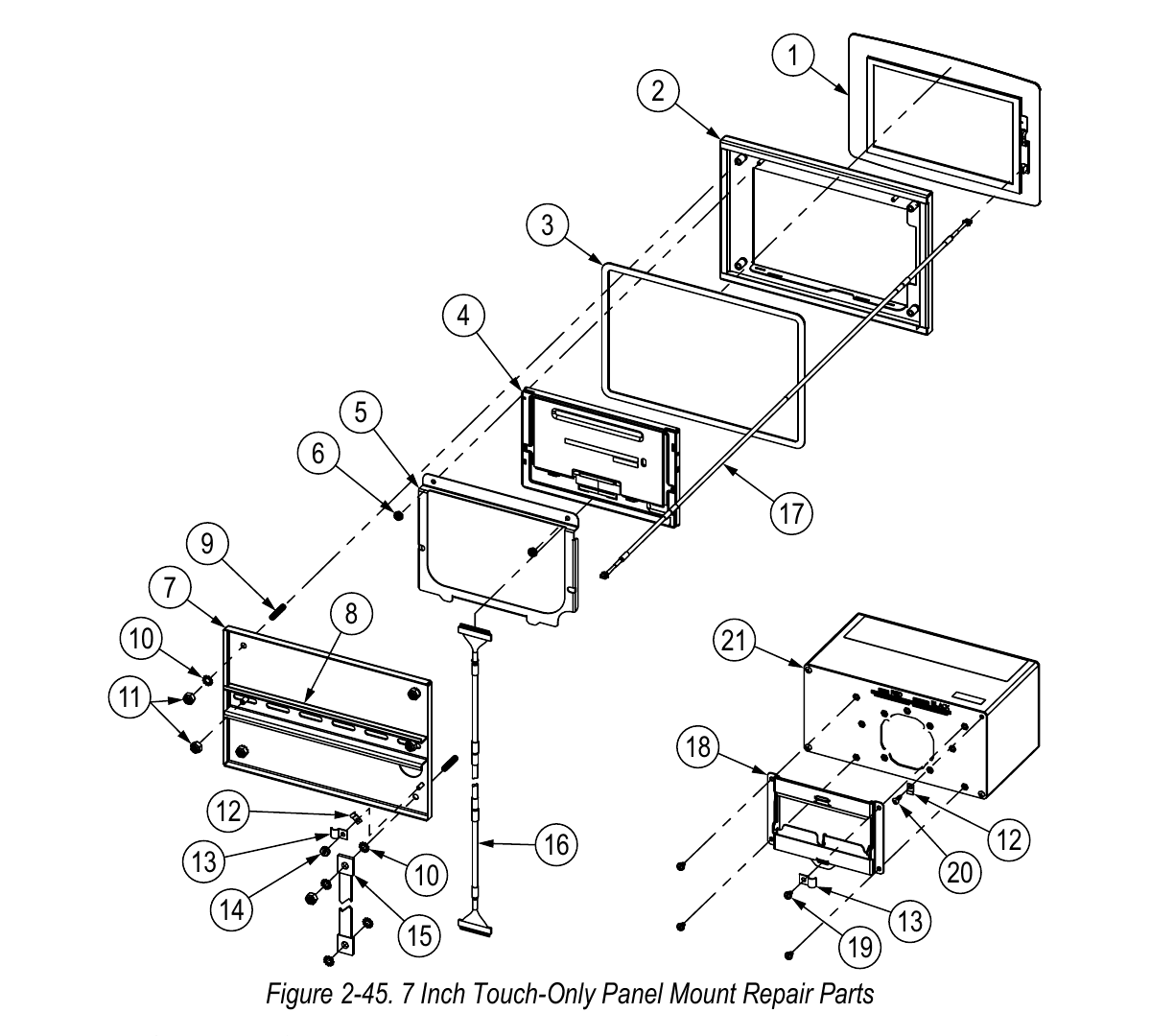

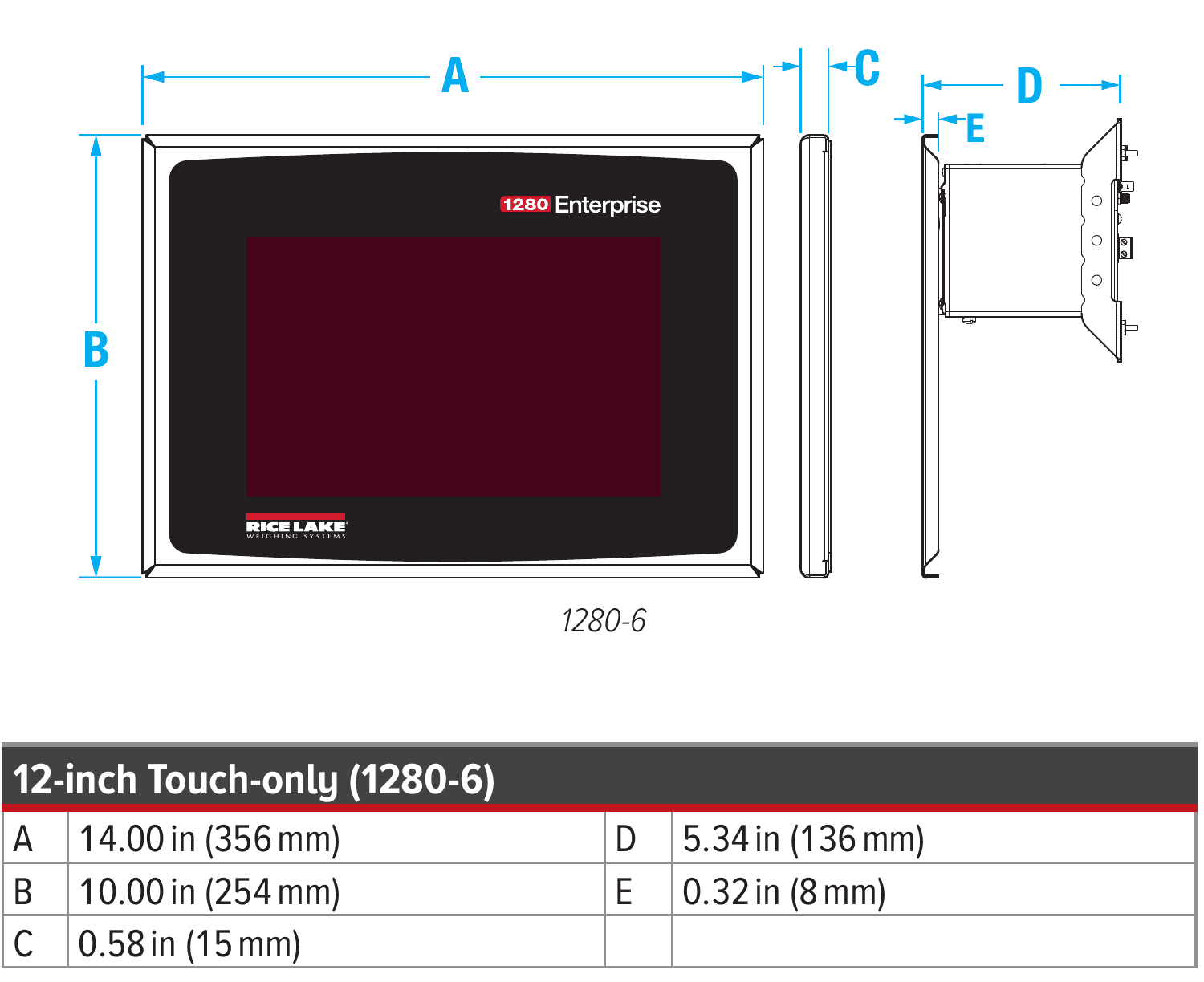

- Universal tilt-stand, wall and panel enclosures;7-inch and12-inch touch-only panel variants
Select a configuration
Files & Downloads
Rice Lake 1280 Enterprise Series Programmable Digital Weight Indicator

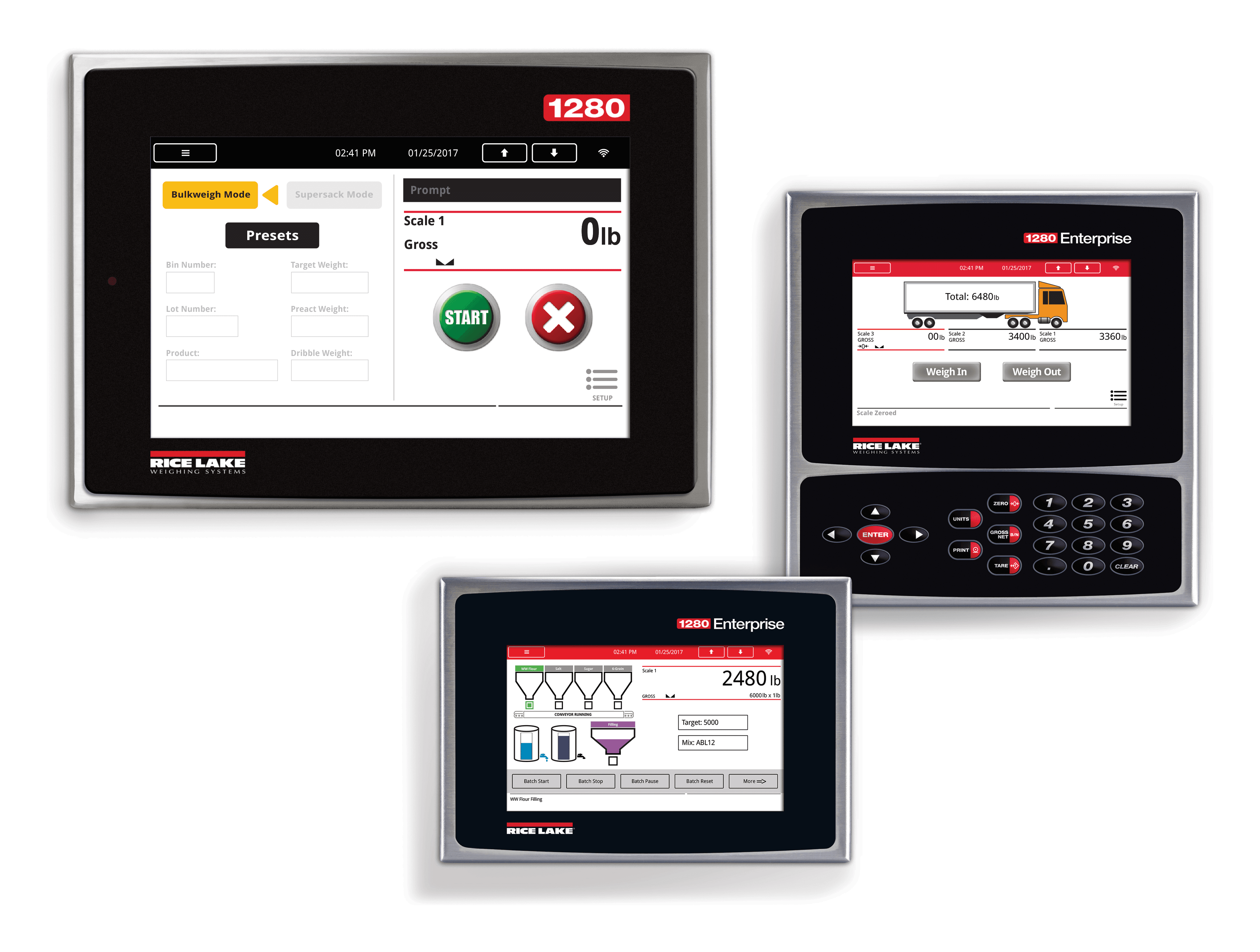

Rice Lake 1280 Enterprise programmable weight indicator with color touchscreen, up to eight scales, six option-card slots, and universal, wall, panel and touch-only display configurations.
The 1280 Enterprise Series offers five enclosure/display model groups. Select the input voltage, regional plug, display brightness and installed single- or dual-channel A/D card for the application. Custom configuration choices, application programs and accessory cards are separate options; confirm which hardware and programs are included in the chosen configuration.
