What are the main applications of the ZK830?

The ZK830 can operate as a dedicated counting scale, a high-resolution checkweigher, or a general-purpose bench balance. It is especially useful for component inventory, kitting, packing, and production control.

Can the ZK830 be used for legal-for-trade weighing?

Yes. Approved configurations support NTEP Class III operation at 10,000 divisions. High-resolution 100,000d operation and the counting function are not legal for trade, so the selected setup must match the intended transaction.

How long does the factory-fitted battery operate?

The internal battery can provide up to 16 hours of continuous use and typically recharges in about four hours. Actual runtime depends on the connected base, peripherals, and operating conditions.

Can the indicator be moved away from the base?

Yes. The indicator can be removed from the front of the BSQ base and used up to 50 ft away with a compatible mounting and cable arrangement.

Can a second weighing base be connected?

Yes. The ZK830 can use its local BSQ base plus one compatible remote base. The remote keypad is required to select the second base.

What affects parts-counting accuracy?

Piece-weight consistency, sample size, vibration, drafts, temperature changes, static electricity, moisture, and the selected accuracy setting can all affect results. A stable installation and representative sample improve performance.

Avery Weigh-Tronix ZK830 High-Resolution Counting Scale

Click image to enlarge and zoom.

Dimensions

6 in round, 9 x 12 in, or 12 x 14 in platter

Capacity

1-175 lb

Resolution

100,000d high resolution; NTEP 10,000d available

Accuracy

Counting accuracy configurable up to 99.5%

Construction

Die-cast clamshell base with Quartzell digital transducer

Battery Operation

Factory-fitted battery configurations available

Approvals & Certifications

National Type Evaluation Program (NTEP)

Delivered product may vary depending on model and options selected.

Counting Scales

Avery Weigh-Tronix ZK830 High-Resolution Counting Scale

Count tiny components or larger industrial parts with Quartzell precision, configurable capacity, checkweighing tools, and optional battery power in one rugged bench-scale family.

Select a configuration

Price and part number are specific to the selected model.

Select a configuration

Qty

Files & Downloads

Installation Service Available

Expert Tech Support

Product Overview

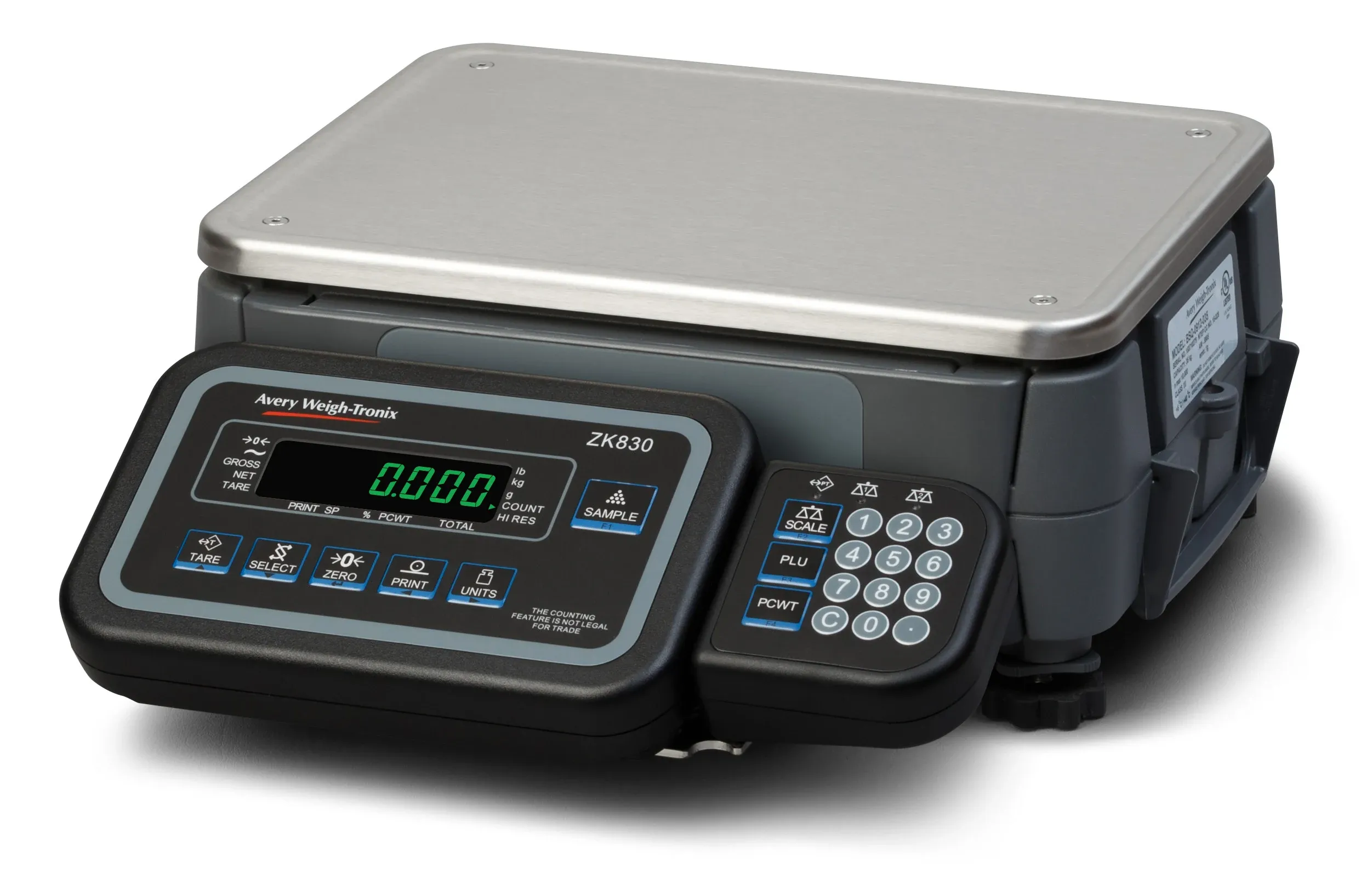

Avery Weigh-Tronix ZK830 High-Resolution Counting Scale

Avery Weigh-Tronix ZK830 high-resolution industrial counting scale with Quartzell digital weighing, checkweighing, 1-175 lb configurations, optional battery power, and available NTEP 10,000d operation.

The ZK830 brings high-resolution parts counting, target checkweighing, and general bench weighing together in a durable system built for industrial inventory and production work. Its Quartzell digital transducer detects very small weight changes while the die-cast base protects the weighing system from daily shock and side loading.

Choose from compact round platters, 9 x 12 in bases, and 12 x 14 in bases with capacities from 1 to 175 lb. AC-powered and factory-fitted battery configurations are available, making it easier to match the scale to a fixed workstation or a mobile counting process.

Counts components with piece weights down to 10 mg under suitable conditions
Supports counting, check counting, checkweighing, accumulation, and general weighing
Stores up to 40 piece weights, tare values, and target limits
Provides up to 1100% overload protection with spring breakaway corner protection
Offers NTEP 10,000d configurations and 100,000d non-legal-for-trade high-resolution operation
Connects to PCs, printers, remote bases, light stacks, and other supported peripherals

Related Products

View all Counting Scales

Counting Scales

XC Basic Counting Scale

Enjoy accuracy and durability with this easy-to-use basic counting scale. Features a large digital display, the ability to display various units of measure, and communication outputs for simple integration.

View Details

Counting Scales

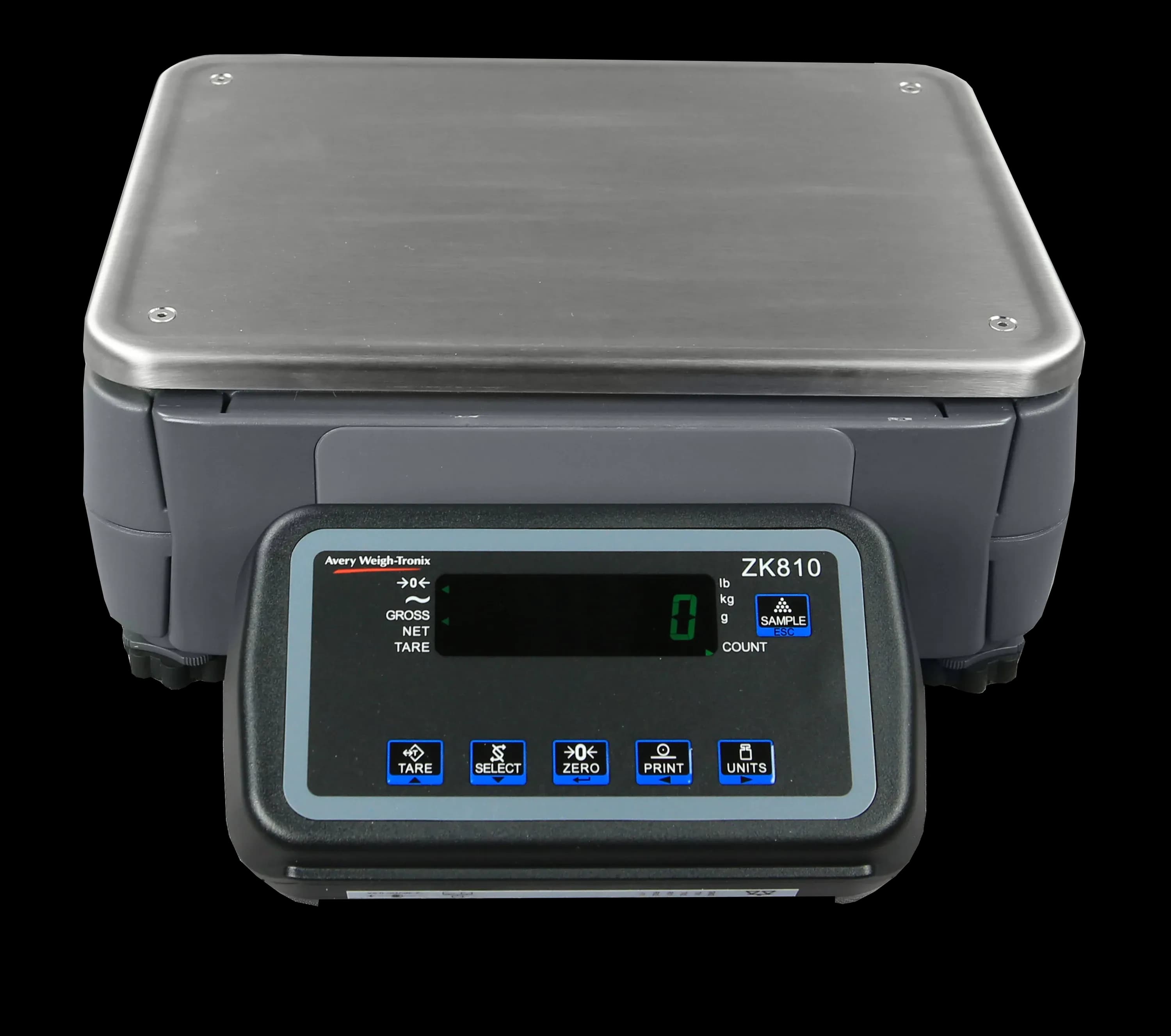

Avery Weigh-Tronix ZK810 Counting Scale

The discontinued Avery Weigh-Tronix ZK810 was a 70 lb high-resolution counting and general weighing scale with a 9 x 12 in Quartzell base, Ethernet, and dual RS-232 ports.

View Details

Counting Scales

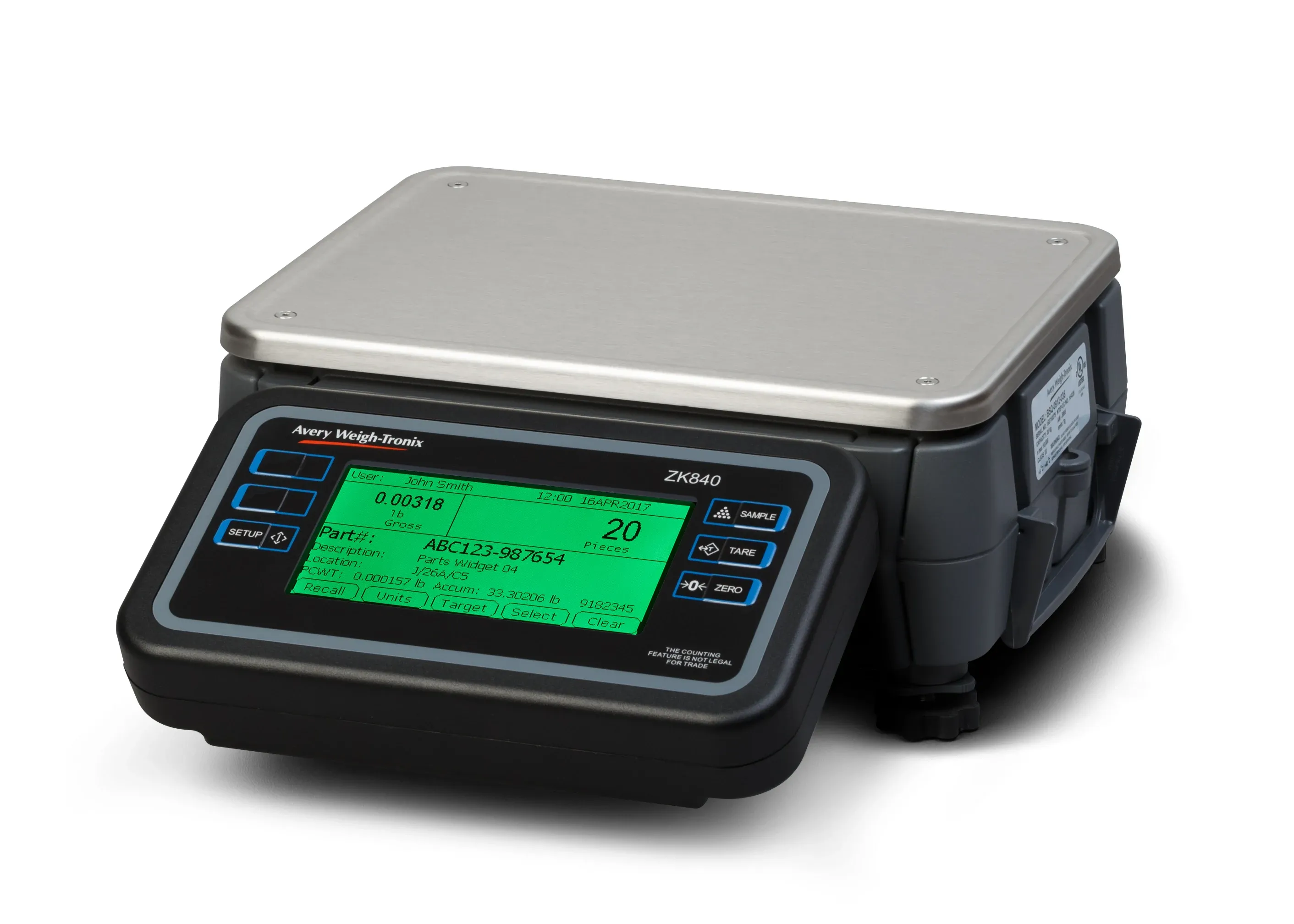

Avery Weigh-Tronix ZK840 Counting Scale
