AXW-110 Heavy Duty Portable Axle Scale System
SKU: AXW110HD
Click image to enlarge and zoom.
Dimensions
40.5 in X 40.5 in
Capacity
110 t Axle
Resolution
50 lb
Accuracy
+_ 1%
Construction
Aluminum / Steel
Ticketing System
Yes
Calibrated
Yes
Delivered product may vary depending on model and options selected.
Axle Scales
AXW-110 Heavy Duty Portable Axle Scale System
SKU: AXW110HD
Axle Scale Features:
- 110 ton (220,000 lb) axle capacity
- Pad dimensions: 40.5" X 40.5"
- Durable steel construction
- Portable transport crate included
- Spare cabling included
- Water protected design
- 2 pads included (sold in pairs)
Custom Pricing Available
This product is configured to your specifications. Request a quote for pricing and lead time.
Files & Downloads
AXW Series Portable Axle Scales Product BrochurePDFAXW-110 Heavy Duty Portable Axle Scale System
Pair of 110 ton axle capacity portable truck scales. Durable steel construction, water-resistant design. Includes weighing terminal and spare cabling. Not legal for trade.
AXW-110 Portable Axle Scale Overview
The AXW-110 portable axle scale system was designed to allow off-road and mining operations the ability to better manage their hauling fleets. These portable mining scales are ideal for operations looking to capture critical vehicle weights on smaller off-road equipment. For your peace of mind, we offer a 1-year warranty on all parts and equipment!
Additional AXW-110 Scale Pad Features:
- Real world typical static weighing accuracy of ~99%
- 110 ton/220,000 lb. axle capacity (2 scale pads)
- Weigh in either pounds or kilograms
- Configurable graduations: 10, 20 or 50 lb/kg increments
- Easy-to-use operation featuring live weight reading
- Durable steel construction featuring a water-resistant, corrosion-proof and shock-resistant design
- Included ramps for easy access
- Highly durable transport crate included
- Power provided by the weighing terminal
- Walz 1-Year Manufacturer's Warranty
- Not legal for trade
Included AXWT Weighing Terminal Features:
- High-definition touch screen with high-speed thermal printer
- Standby working 40 hour battery with auto switch-off function
- Records stored internally
- Runs on Windows CE 6.0 system with good compatibility
- 2 channel system as default, 4/6/8 channel system are optional
- RS232, USB 2.0 as default for wireless edition USB 2.0 & WiFi as default. Bluetooth & USB 3.0 are optional
- 98.40 ft/30 meters working distance for wireless version
- Records each wheel weight, each axle weight and total truck weight
- Excel text or database file output
- 4 Cores ARM CPU, 2GB memory with 4GB hard disk. (Higher level is optional) * SMS message, iOS application, Android applications are optional.
- 7" screen is the default option — 10" or 13" screens are optional.
Related Products
View all Axle Scales
Axle Scales
AXW-20 Portable Axle Scale System
Features an axle capacity of 40,000+ lbs. and durable aluminum construction. Features built-in digital display, and is completely portable.
Axle Scales

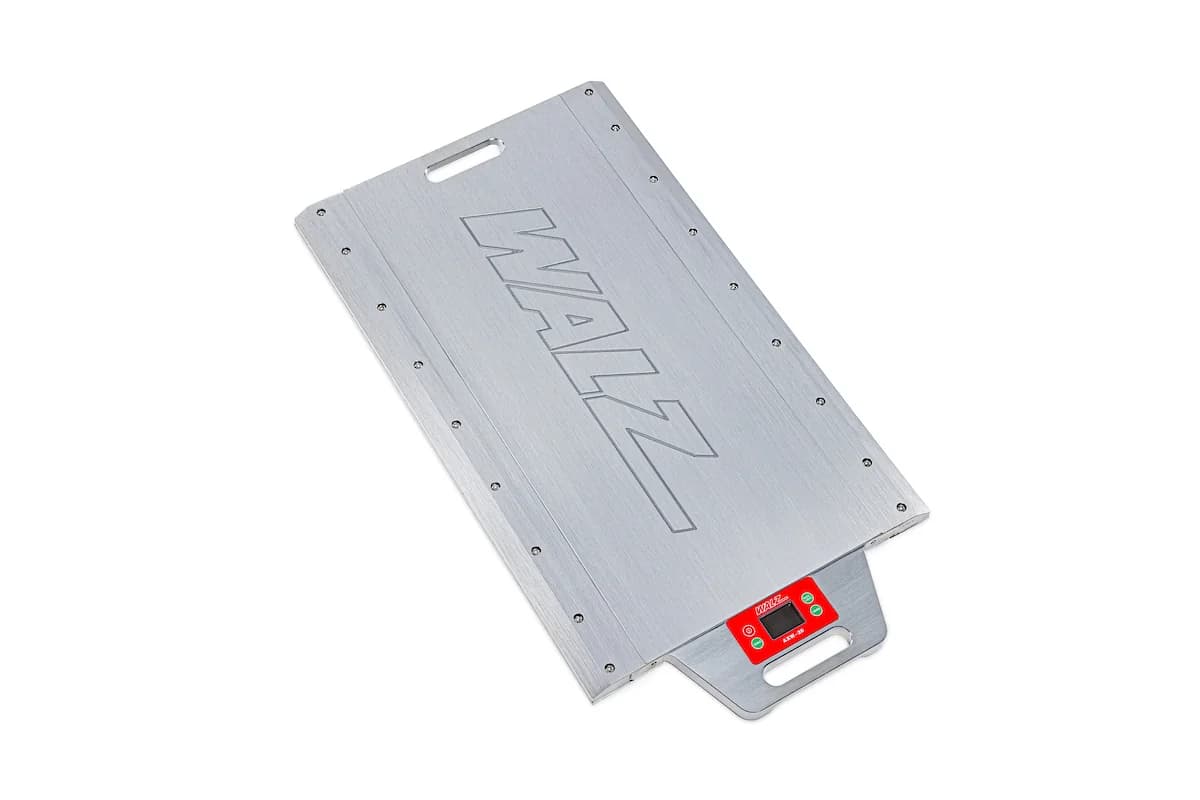

AXW-20LP Portable Low-Profile Axle Scale System
