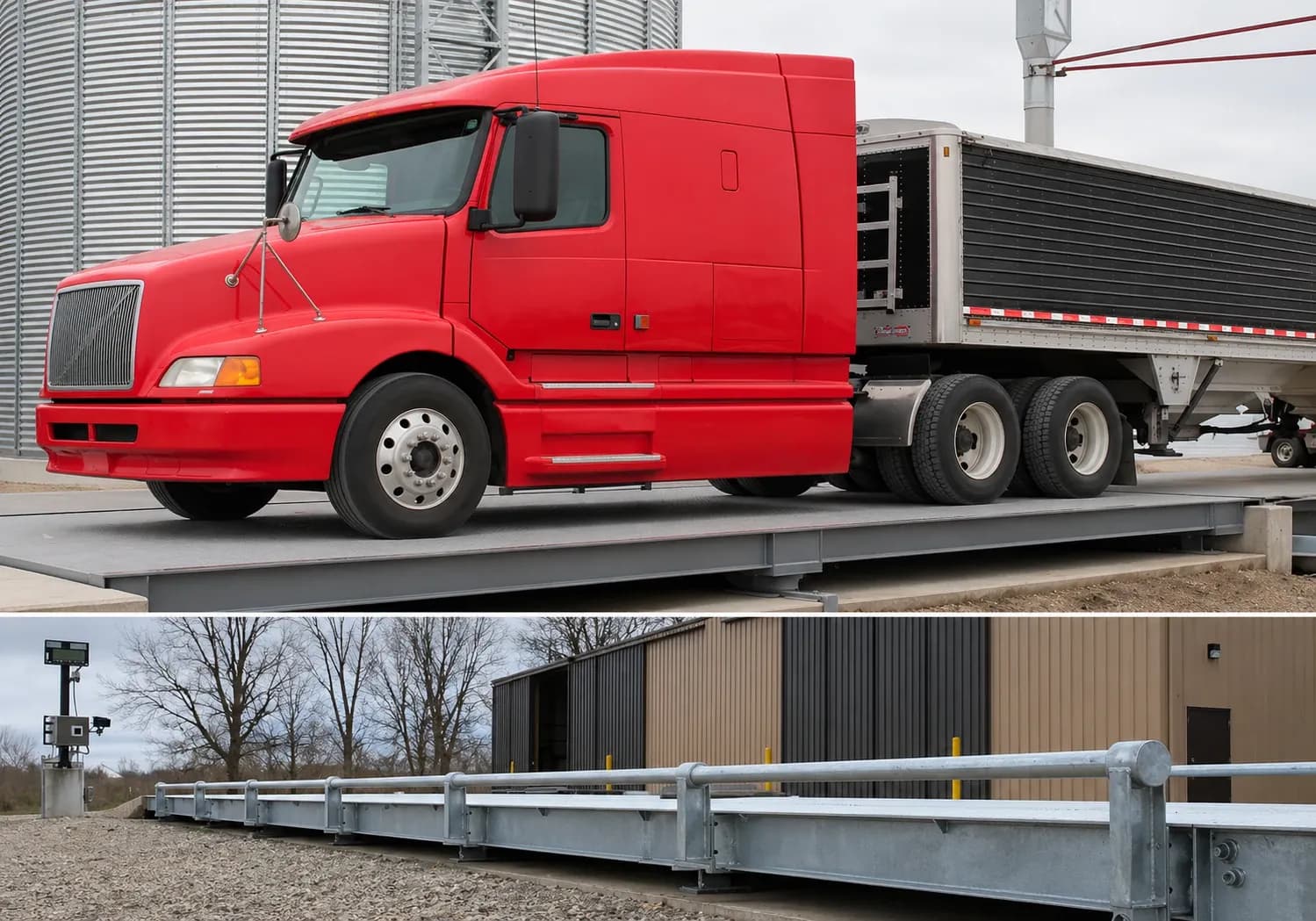

PT-TS Series Heavy Duty Portable Truck Scale
SKU: PTTS
Click image to enlarge and zoom.
Capacity
Selectable
Resolution
Selectable
Accuracy
+_ 0.1%
Construction
Steel
Ticketing System
Yes
Approvals & CertificationsNational Type Evaluation Program (NTEP)
- National Type Evaluation Program (NTEP)
Delivered product may vary depending on model and options selected.
Portable Truck Scales
PT-TS Series Heavy Duty Portable Truck Scale
SKU: PTTS
Truck Scale Features:
- Available scale lengths: 15' 30' 43' 58' 72'
- Available scale widths: 10' 11' 12' 14'
- NTEP-Certified "Legal-For-Trade"
- Steel deck design
- Diamond safety tread plate
- Structural beam construction
- Top-access design
- Tension suspension system
- Modular design for simple addition/relocation
- Simple installation process
Custom Pricing Available
This product is configured to your specifications. Request a quote for pricing and lead time.
Files & Downloads
Walz PT-TS Portable Truck Scale Product BrochurePDFPT-TS Series Heavy Duty Portable Truck Scale
Available in widths of 10'-14' and lengths from 15' to 72'+, this Legal-for-Trade full-length truck scale features a modular design for easy installation, expansion, and relocation. Includes limited 5-year warranty.
PT-TS Portable Truck Scale Overview
Walz Scale has been supplying quality portable truck scales to our customers for over 60 years. We have used our extensive knowledge, decades of hands-on experience, and customer feedback to build what we believe to be the very best portable truck scale in the entire scale industry. Our portable truck scales are available in a wide range of standard and customized configurations to suit your specific application needs. We offer portable truck scales in standard sizes, ranging between 10-14 ft wide and 10-100+ ft long.
Standard Features of the PT-TS Scale
- Tall, wide flange I-Beams running longitudinally
- Heavy duty diamond checkered steel safety plate
- Top-access cover plates for easy installation and maintenance
- Low profile design
- Modular design for future expansion and/or relocation
- Anchored load cell stands
- Double parallel weed-less end links and self compensating swing link suspension
- High accuracy load cells
- All surfaces are sandblasted (including the bottom) to white metal then sprayed with rust-inhibiting primer and enamel finish coat
- Bulkheads included
- Lifting lugs
- Portability sub-frame
- Pre-wired with quick disconnect cabling for simple installation
- 14" overall height
- NTEP Approved and certifiable "Legal for Trade"
- Limited 5-year warranty
