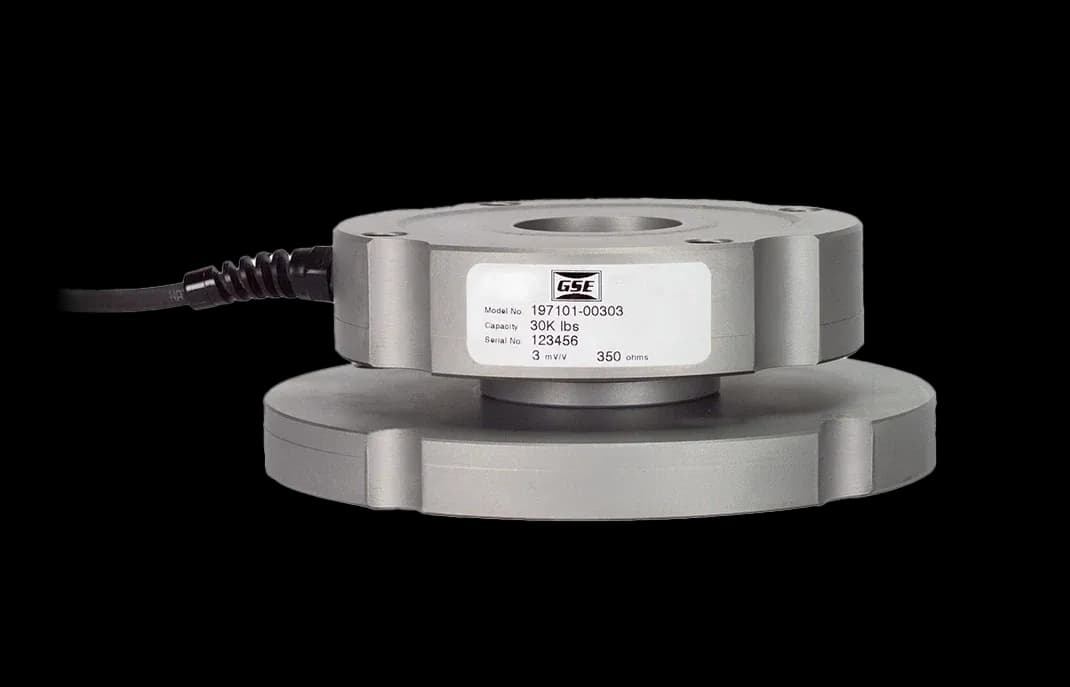

Avery Weigh-Tronix ITA Integrated Tank Assembly
Click image to enlarge and zoom.
Capacity
1,000-125,000 lb per assembly
Accuracy
3 mV/V output; +/-0.05% non-linearity
Construction
Welded stainless steel
Legal for Trade
Process weighing configuration
IP Rating
NEMA 4X; IP66/IP68
Operating Temperature
10 to 110 F (-12 to 43 C)
Power Supply
10-15 VAC/VDC excitation
Delivered product may vary depending on model and options selected.
Load Cells
Avery Weigh-Tronix ITA Integrated Tank Assembly
Select a configuration
Files & Downloads
Unless otherwise noted, referenced media is copyright Avery Weigh-Tronix or other credited rights holders. Media rights
ITA Integrated Tank Assembly Technical SpecificationPDFWeigh Bar Product BrochurePDFAvery Weigh-Tronix ITA Integrated Tank Assembly
Avery Weigh-Tronix ITA integrated tank weighing assembly with stainless welded construction, 1,000-125,000 lb capacities, IP66/IP68 load-cell protection, and built-in uplift and side-load restraint.
The ITA is a self-contained tank weighing assembly that combines a hermetically sealed load cell with a low-profile stainless mounting system. Built-in uplift restraint and side-load protection reduce the need for separate check rods or stabilizing hardware in many applications.
Nine individual capacities cover 1,000 to 125,000 lb. The assembly tolerates up to three degrees of misalignment without sacrificing weighing accuracy, making installation easier around tanks, hoppers, and process vessels.
- Integrated load cell and stainless mounting assembly
- Per-assembly capacities from 1,000 to 125,000 lb
- Hermetically sealed NEMA 4X load cell rated IP66/IP68
- Built-in uplift restraint and side-load protection
- Tolerates up to three degrees of steelwork misalignment
- 150% safe overload and 300% ultimate overload ratings
Related Products
View all Load Cells
Load Cells
Load Cell Expert Consultation
Accuracy in any scale application begins with quality load cells. Walz can provide load cells to fit almost any weight application. Customizable options are available!
Load Cells

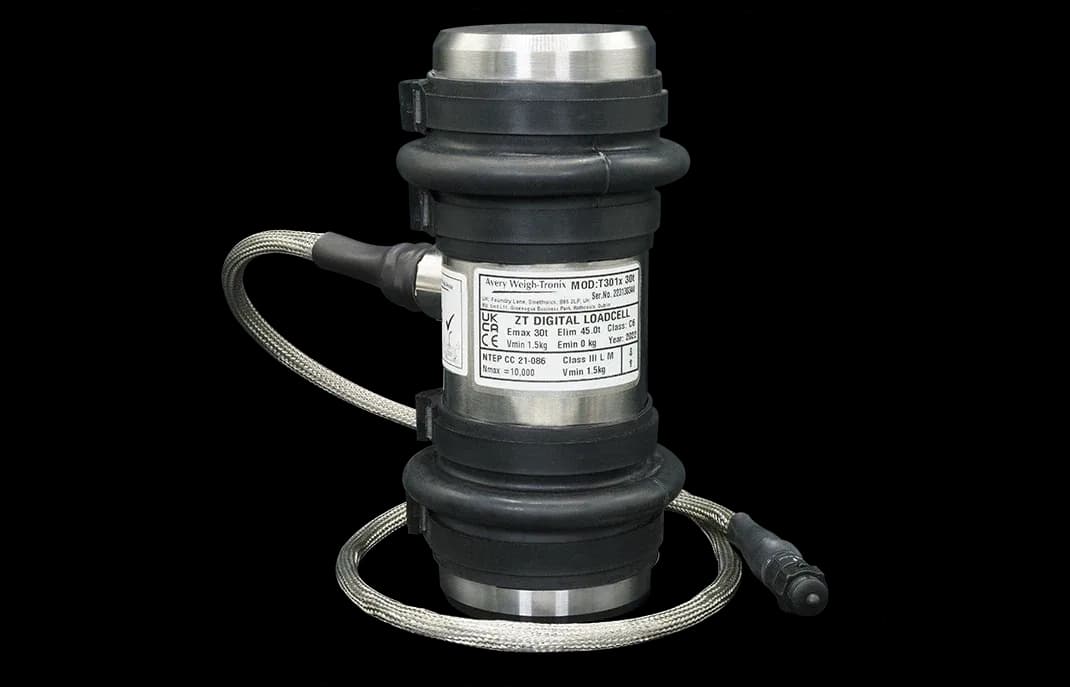

Avery Weigh-Tronix ZT Digital Load Cell
