Is the DS Series legal for trade?

Yes. The DS Series is NTEP Class III approved at 5,000 divisions under Certificate of Conformance 88-221 when the complete installation remains within the approval.

How does the chain-link suspension help?

The chain links direct the platform load into the Weigh Bars while reducing unwanted side and end forces. They also absorb shock that would otherwise be transferred directly to the sensors.

What capacities are currently available?

The current range includes 500, 1,000, 5,000, 10,000, and 20,000 lb configurations with platform sizes from 24 x 24 through 84 x 60 inches.

Can the DS Series be pit mounted?

Yes. A compatible pit frame can create a flush weighing surface where traffic flow or floor-space constraints make a surface-mounted deck less practical.

Can the DS be used in a hazardous area?

The Weigh Bars and junction box have Factory Mutual approvals for certain hazardous-area systems. The indicator, barriers, wiring, and complete installation must be reviewed for the intended classification.

Avery Weigh-Tronix DS Series Deck Scale

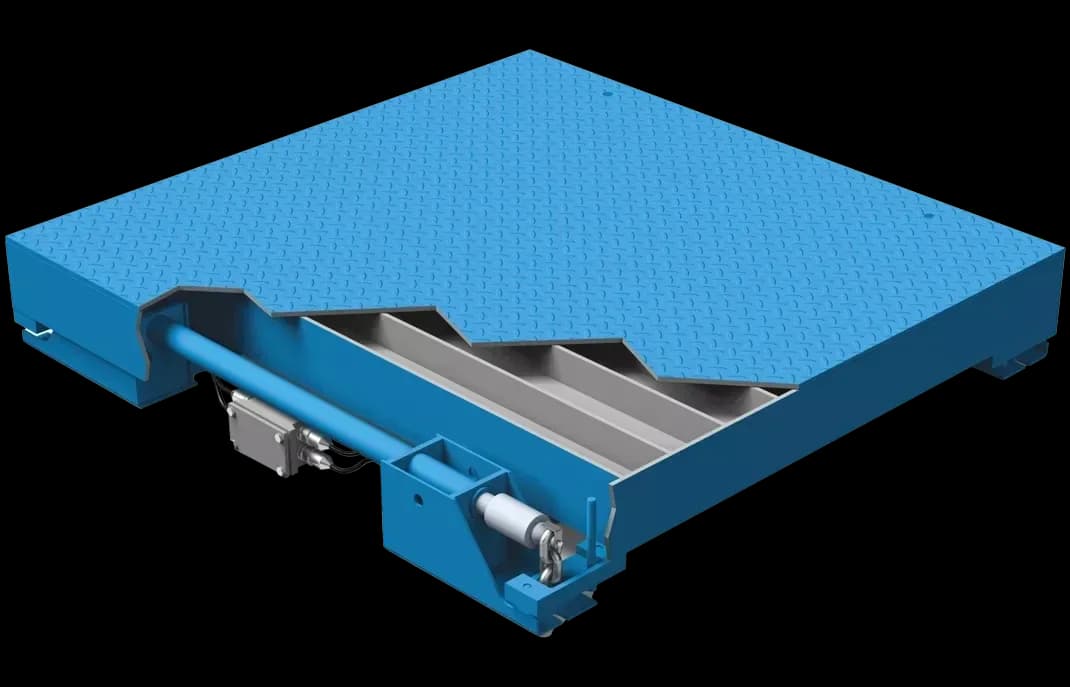

Avery Weigh-Tronix DS Series industrial deck scale cutaway

Click image to enlarge and zoom.

Dimensions

24 x 24 to 84 x 60 in; configuration-specific

Capacity

500-20,000 lb

Resolution

5,000 divisions legal for trade; up to 10,000 divisions non-trade

Accuracy

NTEP Class III at 5,000 divisions

Construction

Welded carbon steel deck with internal support channels

Legal for Trade

Yes - NTEP CC 88-221

Operating Temperature

14 to 104 deg F (-10 to 40 deg C)

Approvals & Certifications

National Type Evaluation Program (NTEP)

Delivered product may vary depending on model and options selected.

Floor Scales & Pallet Scales

Avery Weigh-Tronix DS Series Deck Scale

Handle routine industrial weighing and demanding loading conditions with a reinforced carbon steel deck scale offered from 500 to 20,000 lb capacity.

Select a configuration

Price and part number are specific to the selected model.

Select a configuration

Qty

Files & Downloads

Unless otherwise noted, referenced media is copyright Avery Weigh-Tronix or other credited rights holders. Media rights

DS Series Technical SpecificationPDF Floor Scale Product BrochurePDF

Installation Service Available

Expert Tech Support

Product Overview

Avery Weigh-Tronix DS Series Deck Scale

Avery Weigh-Tronix DS Series carbon steel deck scale with protected Weigh Bar sensors, chain-link suspension, 200% overload protection, 500-20,000 lb capacities, and NTEP approval.

The DS Series is a rugged industrial deck scale built around a high-steel platform, protected cabling, and a chain-link Weigh Bar suspension. The structure is designed to absorb shock and side loading while maintaining accurate, dependable operation in busy production and warehouse environments.

Seven current configurations cover compact 24 x 24 inch platforms through an 84 x 60 inch heavy-duty deck, with capacities from 500 to 20,000 lb. Adjustable leveling hardware simplifies installation, and supported models can be installed in a pit when floor space and traffic flow require a flush surface.

Reinforced welded deck with protected internal cabling
Chain-link Weigh Bar suspension reduces side and end loading
Side-impact stops help protect the weighing system
200% overload protection and 100% end loading
NTEP Class III approval at 5,000 divisions under CC 88-221
Factory Mutual approved sensing components support reviewed hazardous-area systems

Avery Weigh-Tronix DS Series Deck Scale

Approvals & Certifications

Avery Weigh-Tronix DS Series Deck Scale

Avery Weigh-Tronix DS Series Deck Scale

Related Products

AG-4X4-NTEP Floor Scale

AG-5X5-10K Floor Scale

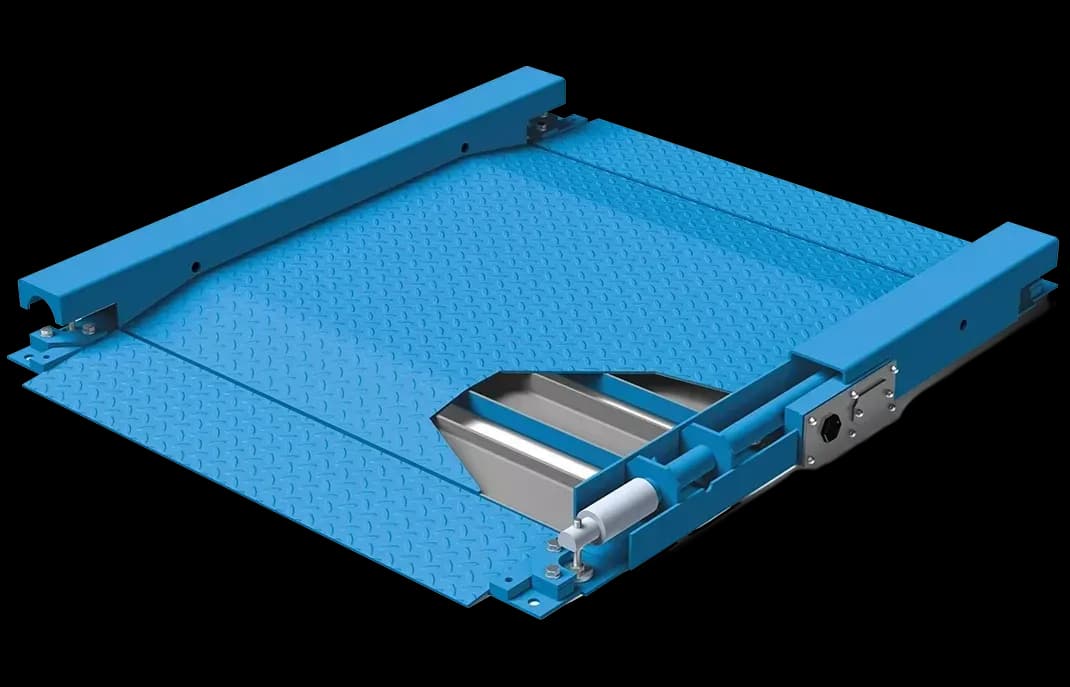

Avery Weigh-Tronix DW & DWS Low-Profile Drum Weigher
