Avery Weigh-Tronix DW & DWS Low-Profile Drum Weigher
Click image to enlarge and zoom.
Dimensions
30 x 30 x 8 in overall; 1.5 in loading surface
Capacity
1,000 lb
Resolution
5,000 divisions legal for trade; up to 10,000 divisions non-trade
Accuracy
+/-1 division at 5,000 divisions
Construction
Powder-coated carbon steel or 304 stainless steel
Legal for Trade
Yes - NTEP CC 92-130
Operating Temperature
14 to 104 deg F (-10 to 40 deg C)
Approvals & Certifications
- National Type Evaluation Program (NTEP)
Delivered product may vary depending on model and options selected.
Floor Scales & Pallet Scales
Avery Weigh-Tronix DW & DWS Low-Profile Drum Weigher
Select a configuration
Files & Downloads
Avery Weigh-Tronix DW & DWS Low-Profile Drum Weigher
Avery Weigh-Tronix DW and DWS low-profile drum weigher with two-way access, 1,000 lb capacity, four Weigh Bar sensors, carbon or stainless steel construction, and NTEP approval.

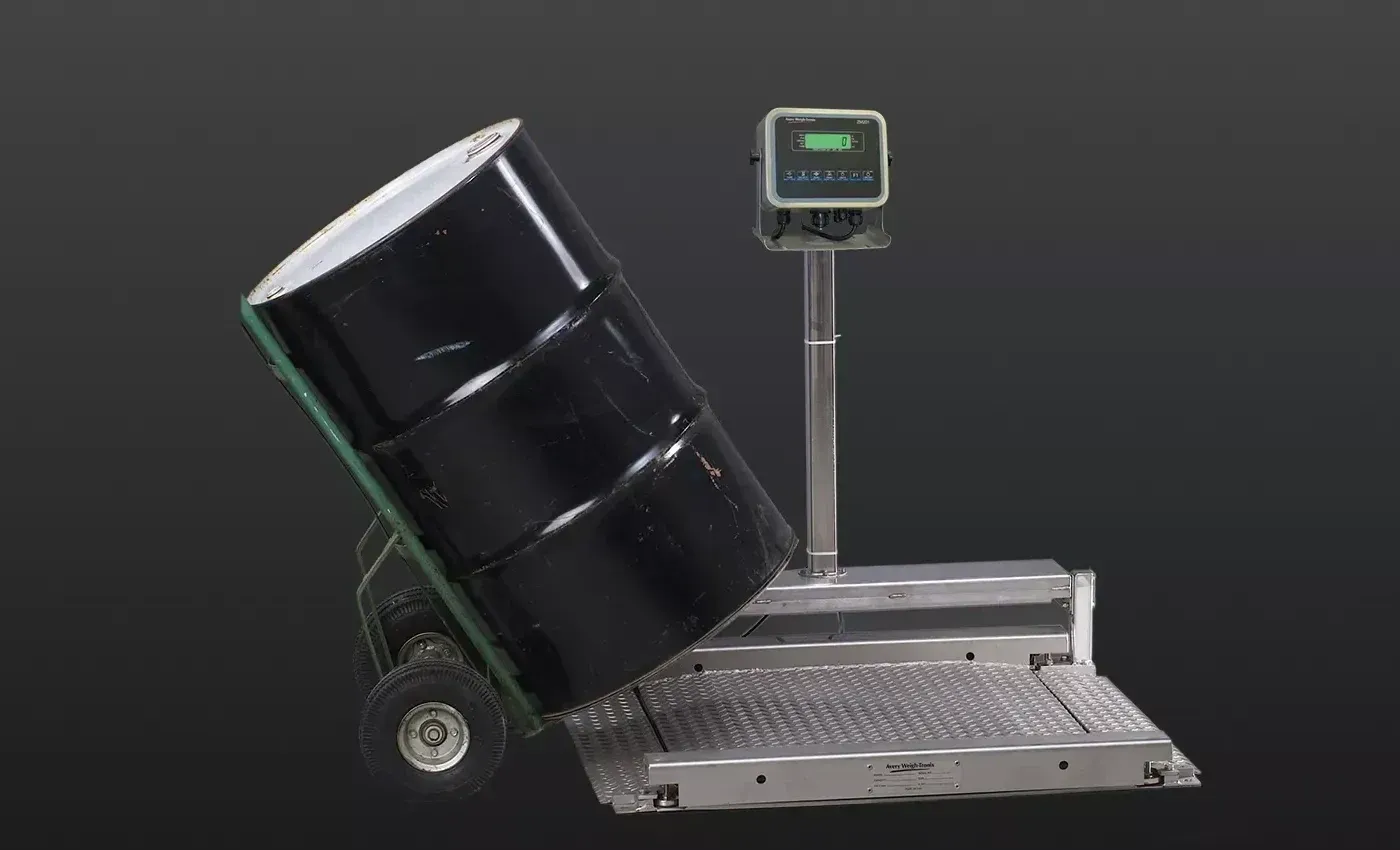

The DW and DWS Drum Weigher provides a low loading surface for wheeled bins, drums, and carts while retaining raised side rails that can support side-loaded pallets. Two-way access helps operators move loads through the weighing area without navigating a conventional full-width ramp.
Choose the powder-coated carbon steel DW for general industrial service or the 304 stainless steel DWS for added corrosion resistance. Both current configurations provide 1,000 lb capacity and a 30 x 30 inch weighing surface.
- Low 1.5 inch loading surface for handcarts and wheeled containers
- Two-way access with raised rails for side-loaded pallets
- Four Weigh Bar sensors with 200% overload protection
- Carbon steel DW and stainless steel DWS configurations
- Removable service covers simplify calibration and maintenance access
- NTEP Class III approval at 5,000 divisions under current CC 92-130 listing
