What makes the FCQH easier to clean?

The deck lifts on stainless steel struts so sanitation teams can reach the understructure. Its open tubular base also reduces concealed areas where food, bacteria, and debris can collect.

Is the entire FCQH rated IP68?

The four stainless steel Weigh Bar sensors are hermetically sealed to IP68. Other components have their own construction and installation requirements, so the IP68 claim should not be applied to the complete assembly.

Is the FCQH legal for trade?

Yes. The FCQH is NTEP Class III approved at 5,000 divisions under Certificate of Conformance 03-003 when installed and operated within the approval.

Which capacities and sizes are available?

Current configurations provide 5,000 or 10,000 lb capacity with deck sizes ranging from 36 x 36 through 72 x 48 inches. Select a configuration to match the required footprint and capacity.

Can ramps or a pit frame be added?

Yes. Compatible stainless steel ramps, mounting brackets, floor plates, and both bolt-together and welded pit frames are available. Compatibility depends on deck size and capacity.

Avery Weigh-Tronix FCQH Hinge-Top Floor Scale

Click image to enlarge and zoom.

Dimensions

36 x 36 to 72 x 48 in; configuration-specific

Capacity

5,000 or 10,000 lb

Resolution

5,000 divisions

Accuracy

NTEP Class III at 5,000 divisions

Construction

304 stainless steel hinge-top deck and tubular base

Legal for Trade

Yes - NTEP CC 03-003

IP Rating

IP68 Weigh Bar sensors

Operating Temperature

14 to 104 deg F (-10 to 40 deg C)

Approvals & Certifications

National Type Evaluation Program (NTEP)

Delivered product may vary depending on model and options selected.

Floor Scales & Pallet Scales

Avery Weigh-Tronix FCQH Hinge-Top Floor Scale

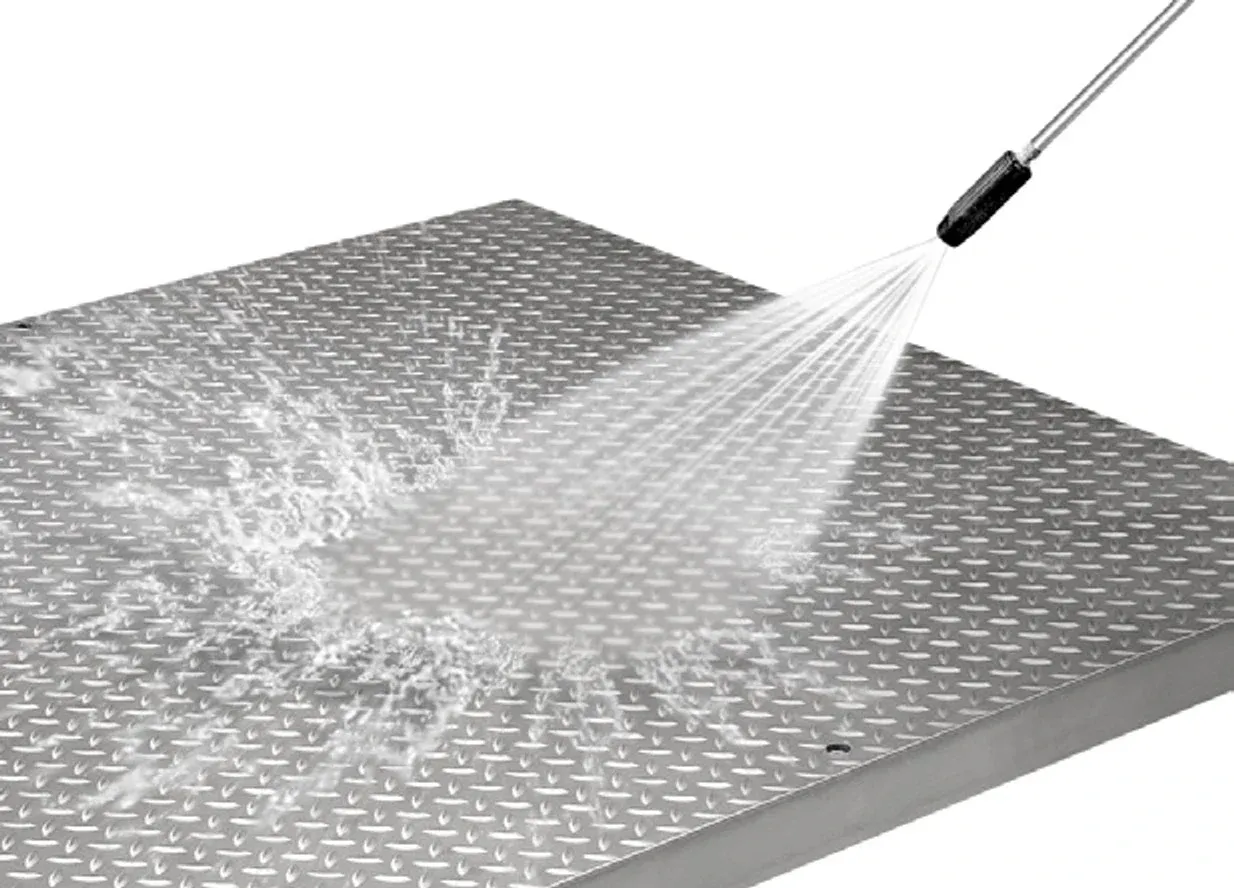

Make thorough washdown faster with a stainless steel hinge-top floor scale built for sanitary food and process environments. Choose a 5,000 or 10,000 lb configuration sized for your floor plan.

Select a configuration

Price and part number are specific to the selected model.

Select a configuration

Qty

Files & Downloads

Unless otherwise noted, referenced media is copyright Avery Weigh-Tronix or other credited rights holders. Media rights

FCQH Technical SpecificationPDF Floor Scale Product BrochurePDF

Installation Service Available

Expert Tech Support

Product Overview

Avery Weigh-Tronix FCQH Hinge-Top Floor Scale

Avery Weigh-Tronix FCQH stainless steel hinge-top floor scale with IP68 hermetically sealed Weigh Bar sensors, washdown access, 5,000 or 10,000 lb capacity, and NTEP approval.

The FCQH opens to provide broad access beneath the deck, helping sanitation teams clean areas that are difficult to reach on a conventional platform scale. Its stainless steel structure is well suited to food processing and other operations where debris, moisture, and frequent washdown are part of the daily routine.

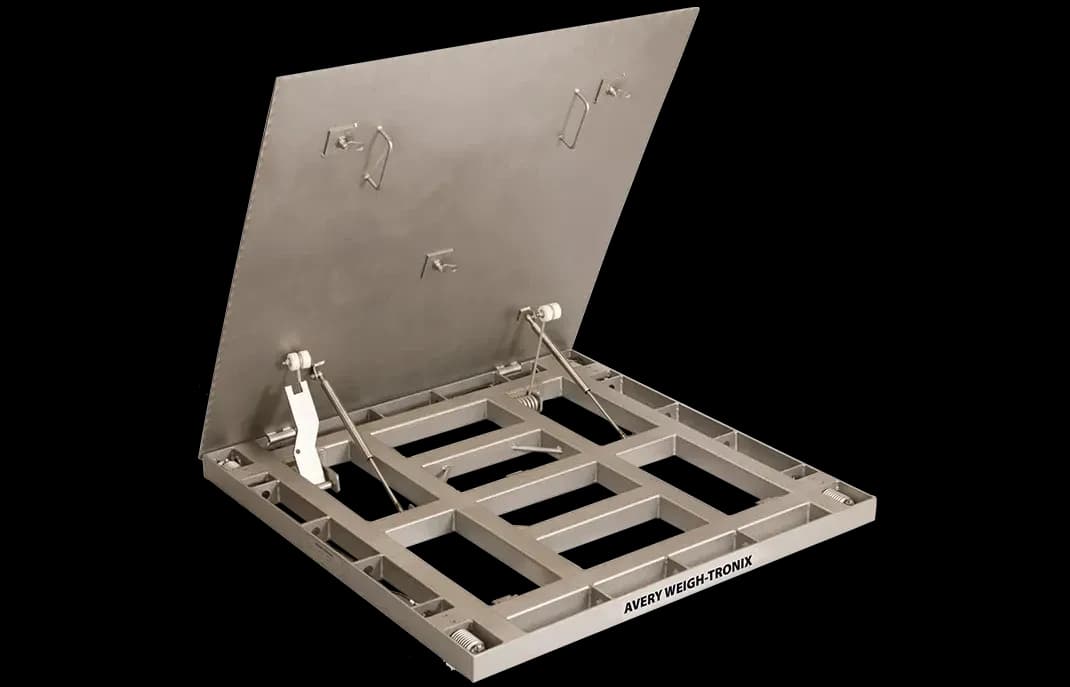

Eight current configurations pair 5,000 or 10,000 lb capacity with deck sizes from 36 x 36 to 72 x 48 inches. Stainless steel struts support the raised deck, while a safety latch helps hold it securely during cleaning and service.

Semi-open hinge-top deck provides practical access for complete washdown
Tubular stainless steel base minimizes concealed collection points
Four hermetically sealed IP68 stainless steel Weigh Bar sensors
Remote stainless steel junction box with 25 ft interface cable
Slip-resistant 304 stainless steel tread plate with smooth-top availability
NTEP Class III approval at 5,000 divisions under CC 03-003

Avery Weigh-Tronix FCQH Hinge-Top Floor Scale

Approvals & Certifications

Avery Weigh-Tronix FCQH Hinge-Top Floor Scale

Avery Weigh-Tronix FCQH Hinge-Top Floor Scale
