What is the difference between ProDec DSL and DSLS?

DSL configurations use powder-coated mild-steel construction for general industrial service. DSLS configurations use 304 stainless construction, including hermetically sealed stainless Weigh Bars, for washdown and corrosive environments.

Can ProDec be used for legal-for-trade weighing?

Yes. Approved ProDec configurations meet or exceed NTEP Class III 5,000-division accuracy. The complete system must use compatible approved instrumentation and be installed and calibrated correctly.

Can ramps be added to the platform?

Yes. Compatible ramps are available for supported platform widths and capacities, and they can be arranged to improve loading flow from one or more directions.

Can the scale be installed flush with the floor?

Yes. Compatible pit frames are available for supported DSL and DSLS configurations when a flush-floor installation is preferred.

How is the junction box serviced?

The junction box is protected within the deck structure while remaining accessible for service. Stainless DSLS designs use side access to reduce places where food or debris can collect.

Which ProDec construction is best for washdown areas?

Choose a DSLS stainless configuration for regular washdown, food production, chemical handling, or corrosive conditions. DSL mild-steel models are intended for general industrial environments.

Avery Weigh-Tronix ProDec DSL & DSLS Floor Scale

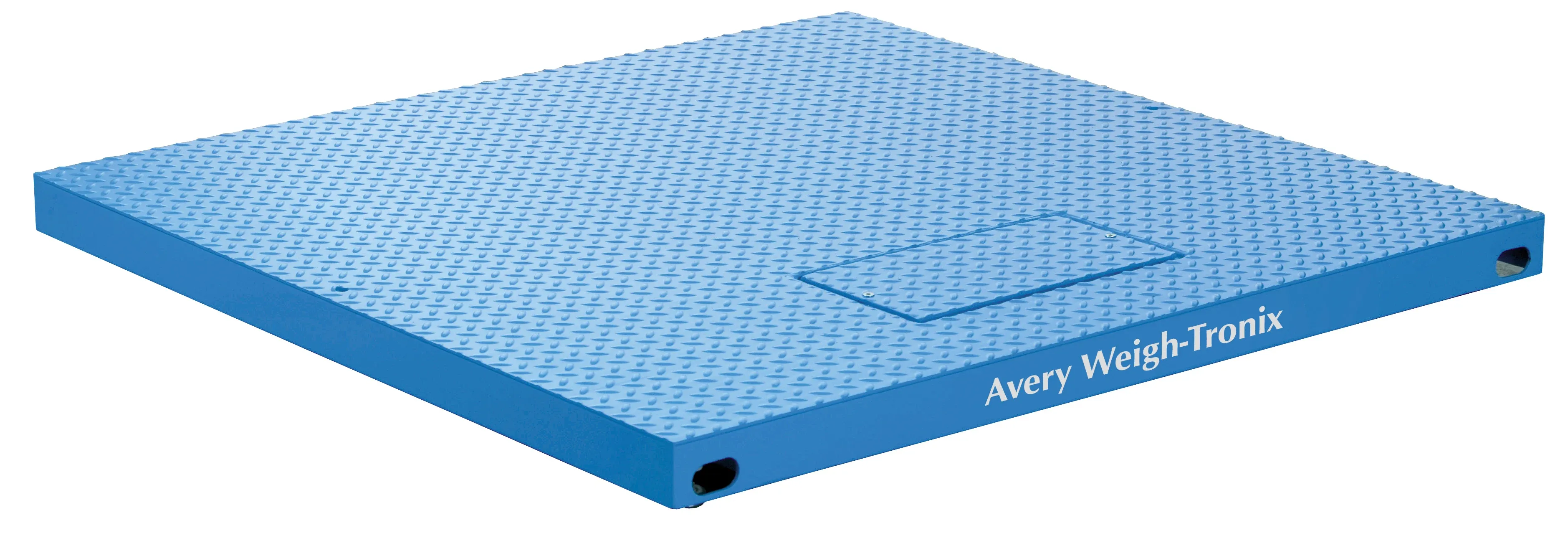

Blue Avery Weigh-Tronix ProDec DSL floor scale

NTEP Certified

Click image to enlarge and zoom.

Dimensions

36 x 36 in to 84 x 60 in current configurations

Capacity

5,000-20,000 lb

Resolution

NTEP Class III 5,000 divisions

Accuracy

Meets or exceeds NTEP Class III 5,000d accuracy

Construction

Welded mild steel or 304 stainless steel

Delivered product may vary depending on model and options selected.

Floor Scales & Pallet Scales

Avery Weigh-Tronix ProDec DSL & DSLS Floor Scale

Bring proven Weigh Bar accuracy to demanding floor-scale work with low-profile mild-steel DSL and washdown-ready stainless DSLS configurations from 5,000 to 20,000 lb.

Select a configuration

Price and part number are specific to the selected model.

Select a configuration

Qty

Files & Downloads

Floor Scale Product BrochurePDF ProDec DSL Technical SpecificationPDF ProDec DSLS Technical SpecificationPDF

Installation Service Available

Expert Tech Support

Product Overview

Avery Weigh-Tronix ProDec DSL & DSLS Floor Scale

Avery Weigh-Tronix ProDec DSL and DSLS industrial floor scales with Weigh Bar sensors, NTEP Class III 5,000d accuracy, 5,000-20,000 lb capacities, and mild or stainless construction.

ProDec floor scales combine a rigid welded deck with four Weigh Bar sensors for reliable weighing through daily loading, impact, and vibration. The low-profile platform, textured tread plate, adjustable feet, and protected junction box support efficient floor-level loading and straightforward service.

Choose a powder-coated DSL configuration for general industrial use or a 304 stainless DSLS configuration for washdown, food, chemical, and corrosive environments. Current configurations cover multiple platform sizes and capacities from 5,000 to 20,000 lb.

NTEP Class III accuracy at 5,000 divisions
Four Avery Weigh-Tronix Weigh Bar sensors
Low-profile platform with slip-resistant tread plate
Top or side access to the protected junction box, depending on construction
Optional ramps and pit frames for surface or flush installation
Mild-steel DSL and 304 stainless-steel DSLS configurations
