How quickly can a BMS-P be installed?

After the site is prepared, its modular sections can typically be assembled, leveled, and ready for operation in about 2-4 hours.

Does the BMS-P require a conventional foundation?

No conventional deep foundation is required for a portable installation. It can be installed on approved stable surfaces such as bridge planks, concrete piers or blocks, a concrete slab, or a swamp pad.

Can the scale become a permanent installation?

Yes. BMS-P configurations can be converted to a permanent low-profile truck scale when operating needs change.

Which platform sizes are available?

Current standard configurations span 20 to 100 feet in length and are available in 10- or 11-foot widths.

Is the BMS-P legal for trade?

Yes. The family is NTEP certified under Certificate of Conformance 97-074, with approval up to 14 feet wide and for livestock weighing.

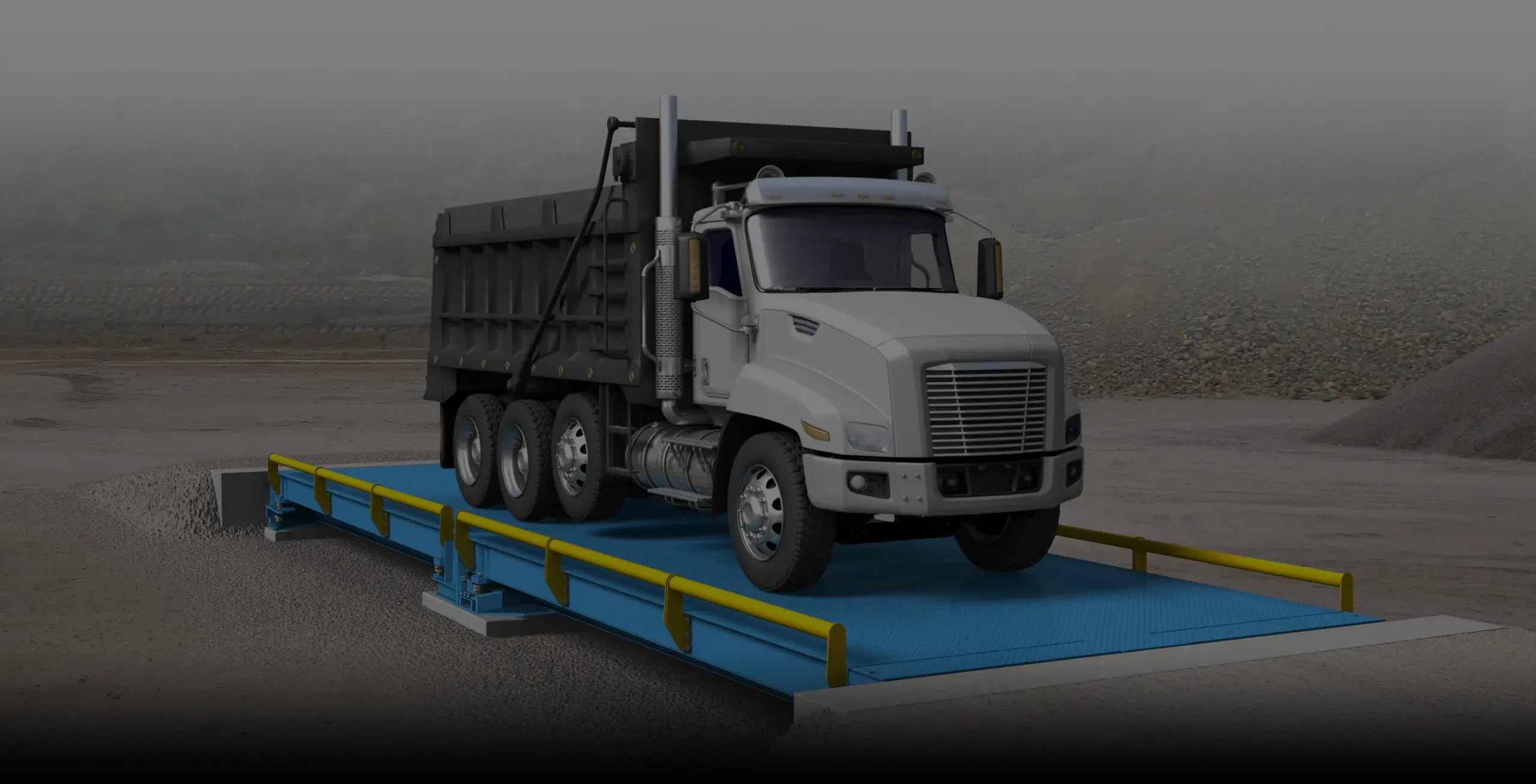

Avery Weigh-Tronix BridgeMont BMS-P Portable Truck Scale

SKU: AVERY-BMS-P

NTEP Certified

Click image to enlarge and zoom.

Construction

1/4 in checkered top plate with 1/8 in bottom plate

Legal for Trade

NTEP CC 97-074, Legal for trade

IP Rating

Standard

Operating Temperature

-30 to 130 F

Delivered product may vary depending on model and options selected.

Full-Length Weighbridge

Avery Weigh-Tronix BridgeMont BMS-P Portable Truck Scale

SKU: AVERY-BMS-P

The BridgeMont BMS-P brings full-length truck weighing to temporary and changing worksites with modular steel sections that can be installed and leveled on a prepared stable surface in as little as a few hours.

Select a configuration

Price and part number are specific to the selected model.

Select a configuration

Qty

Files & Downloads

Portable Truck Scale Technical SpecificationPDF Truck Scale Product BrochurePDF

Installation Service Available

Expert Tech Support

Product Overview

Avery Weigh-Tronix BridgeMont BMS-P Portable Truck Scale

Portable modular construction supports same-day setup and future relocation
Fully enclosed sandwich-steel structure helps protect against moisture and corrosion
Choose 20- to 100-foot platforms in 10- or 11-foot widths
NTEP certified under Certificate of Conformance 97-074
