What makes the IMXT-P different from the BMS-P?

The IMXT-P uses a heavier 3/8-inch checkered top plate and 3/16-inch bottom plate and carries a 15-year weighbridge-structure warranty for demanding service.

How quickly can an IMXT-P be installed?

Once the stable site is prepared, modular sections can typically be assembled, leveled, and placed in operation in about 2-4 hours.

Can the IMXT-P be moved or installed permanently?

Yes. It is designed for relocation and can also be converted to a permanent low-profile truck scale.

Which platform sizes are available?

Current standard configurations span 20 to 100 feet in length and are available in 10- or 11-foot widths.

Is the IMXT-P legal for trade?

Yes. The family is NTEP certified under Certificate of Conformance 98-040, with approval up to 14 feet wide and for livestock weighing.

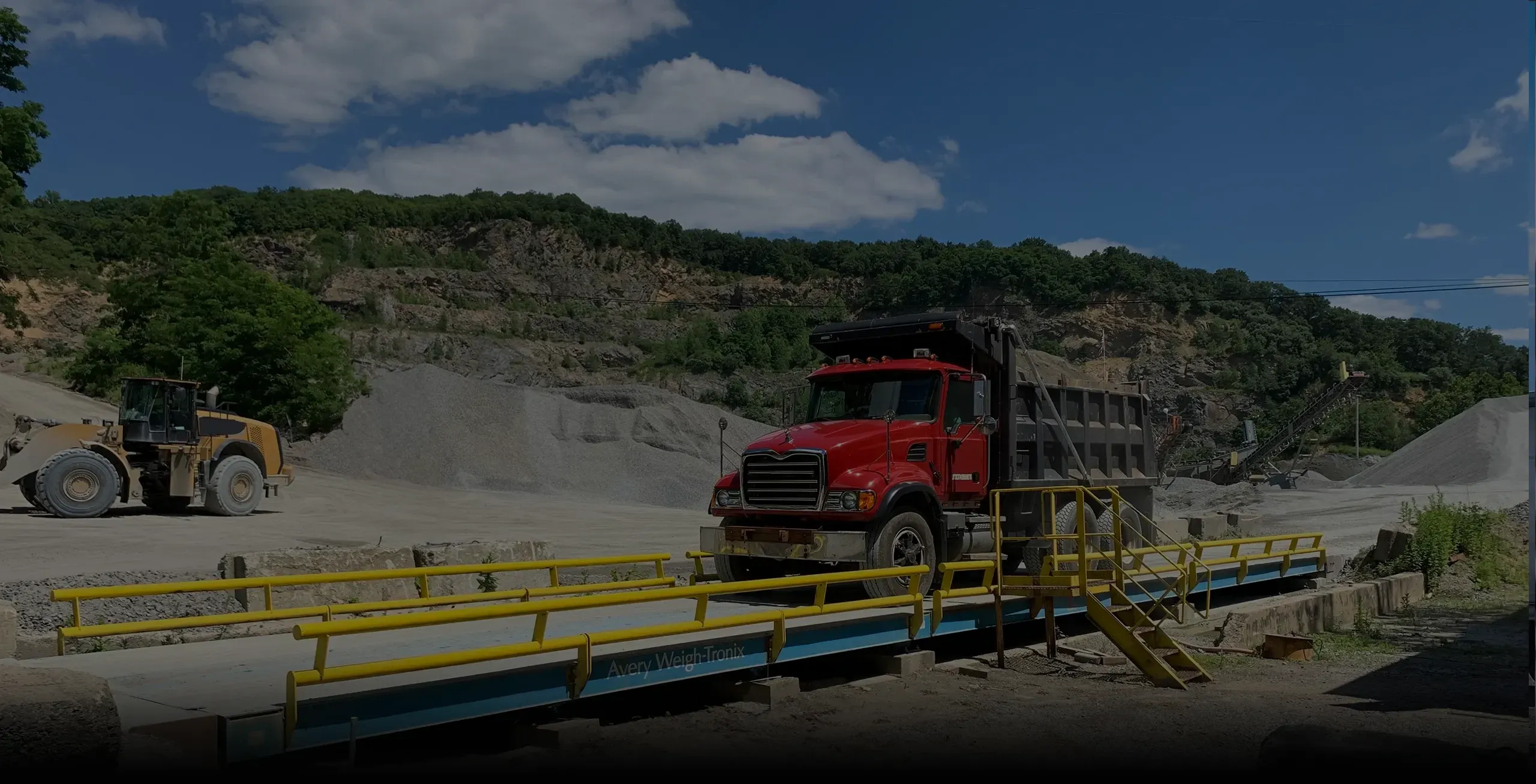

Avery Weigh-Tronix SteelBridge IMXT-P Portable Truck Scale

SKU: AVERY-IMXT-P

Click image to enlarge and zoom.

Construction

3/8 in checkered top plate with 3/16 in bottom plate

Legal for Trade

NTEP CC 98-040, Legal for trade

IP Rating

Standard

Operating Temperature

-30 to 130 F

Approvals & Certifications

National Type Evaluation Program (NTEP)

Delivered product may vary depending on model and options selected.

Full-Length Weighbridge

Avery Weigh-Tronix SteelBridge IMXT-P Portable Truck Scale

SKU: AVERY-IMXT-P

The SteelBridge IMXT-P combines portable modular installation with a heavier sandwich-steel weighbridge for high-cycle truck weighing in quarries, mines, construction sites, and other demanding temporary locations.

Select a configuration

Price and part number are specific to the selected model.

Select a configuration

Qty

Files & Downloads

Unless otherwise noted, referenced media is copyright Avery Weigh-Tronix or other credited rights holders. Media rights

Portable Truck Scale Technical SpecificationPDF Truck Scale Product BrochurePDF

Installation Service Available

Expert Tech Support

Product Overview

Avery Weigh-Tronix SteelBridge IMXT-P Portable Truck Scale

Portable modules can be installed on a prepared stable surface in about 2-4 hours
Heavier 3/8-inch top plate and 3/16-inch bottom plate support demanding service
Choose 20- to 100-foot platforms in 10- or 11-foot widths
NTEP certified under Certificate of Conformance 98-040
